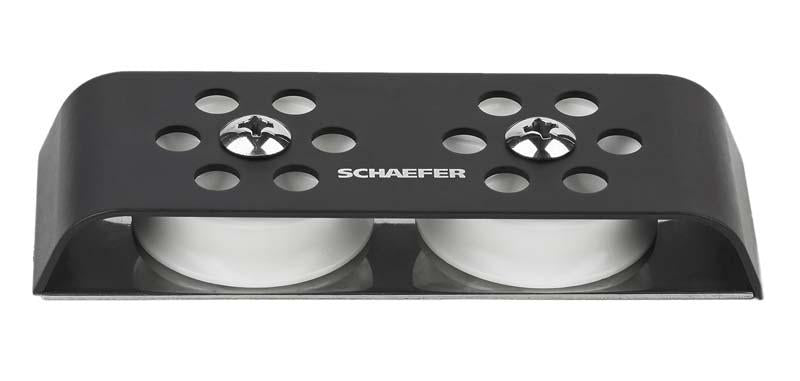

Schaefer 7 Series Aluminum Double Organizer

Item #

704-80

Product Description

Schaefer 7 Series Aluminum Double Organizer

Double Deck Organizer. Aluminum Top Plate, Stainless Steel Base, Delrin(tm) Sheaves. Safe Working Load 3000 lbs. Boats to 45'. Aluminum Sheave available - order sheave #62-023-15cw.

Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Length: 6 31/32 in. (177 mm)

  • Width: 2 3/8 in. (60 mm)

  • Height: 1 in. (25 mm)

  • Fasteners: (2) 5/16" RH (8 mm)

  • C/C: 2 3/4 in. (70 mm)

  • Weight Alum.: 15.5 oz. (439 g)

  • SWL: 3000 lbs. (1365 kg)

  • Max Line: 1/2 in. (13 mm)
