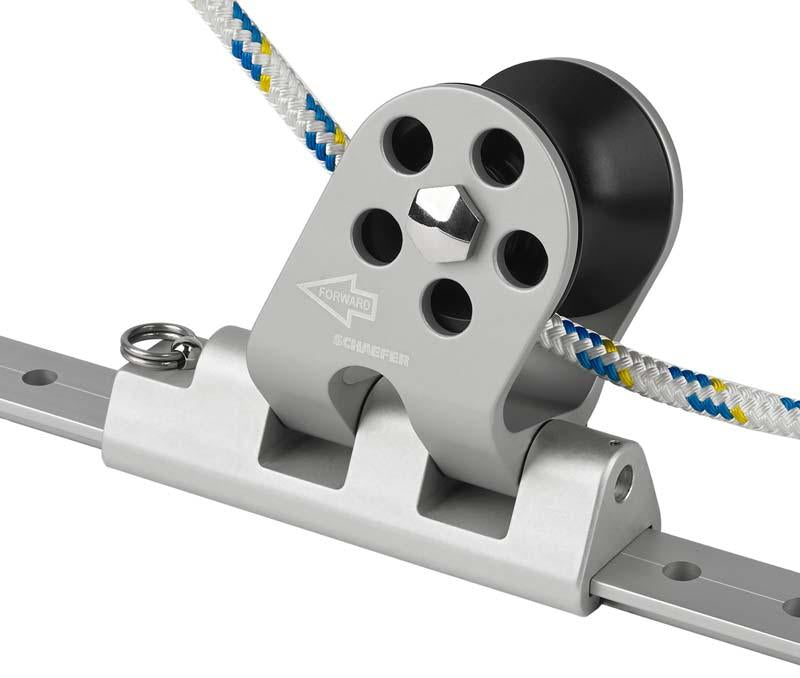

Schaefer 1 1/4" Mid Range Twin Sheet Lead Block

Item #

32-58

Product Description

Schaefer 1 1/4" Mid Range Twin Sheet Lead Block

Specifications

  • Suits Track: 1 1/4" x 3/16" (31mm x 4.6mm) T-Track

  • Max Boat LOA: 44" (13.4m)

  • Max Sail Area: 875 sq. ft. (81.3 sq. m)

  • Displ.: 28000 lbs. (12701 kg)

  • Sheave Dia.: 2 11/16" (68mm)

  • Max Line Dia.: 3/4" (2 x 19mm)

  • Length: 5 7/8" (149mm)

  • Width: 1 3/4" (44mm)

  • Height: 5 1/8" (130mm)

  • Bearing Height: 3" (76mm)

  • Safe Working Load: 4400 lbs. (2000 kg.)

  • Weight: 2 lbs. 2oz. (1.0kg))
