Schaefer Curved Base Single 1 7/16" Delrin Sheave Block

Item #

303-30

Product Description

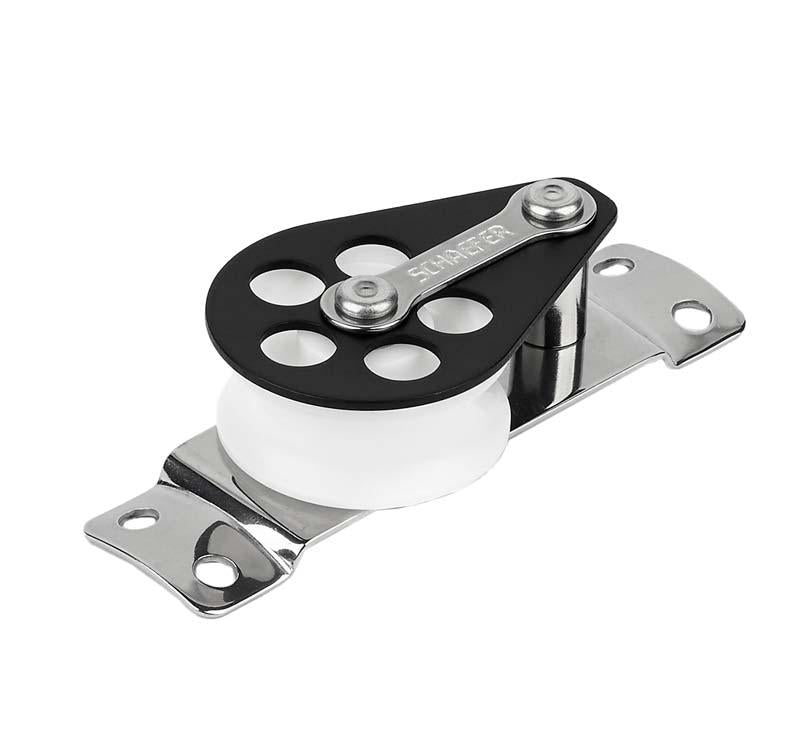

Schaefer Curved Base Single 1 7/16" Delrin Sheave Block

Aluminum cheek block with curved base. Curved stainless steel base fits spar diameters up to 2". Delrin(tm) plain bearing sheave ensures high safe working load and is good for static loads.

Specifications:

  • Sheave Dia.: 1 7/16 in. (37 mm)

  • Max Line: 7/16 in. (11 m)

  • Length: 3 11/16 in. (949 mm)

  • Width: 1 in. (25 mm)

  • Height: 3/4 in. (19 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 3/16 in. (94 mm)

  • SWL: 1000 lbs. (450 kg)

  • Weight Alum. 2.1 oz. (59 g)
