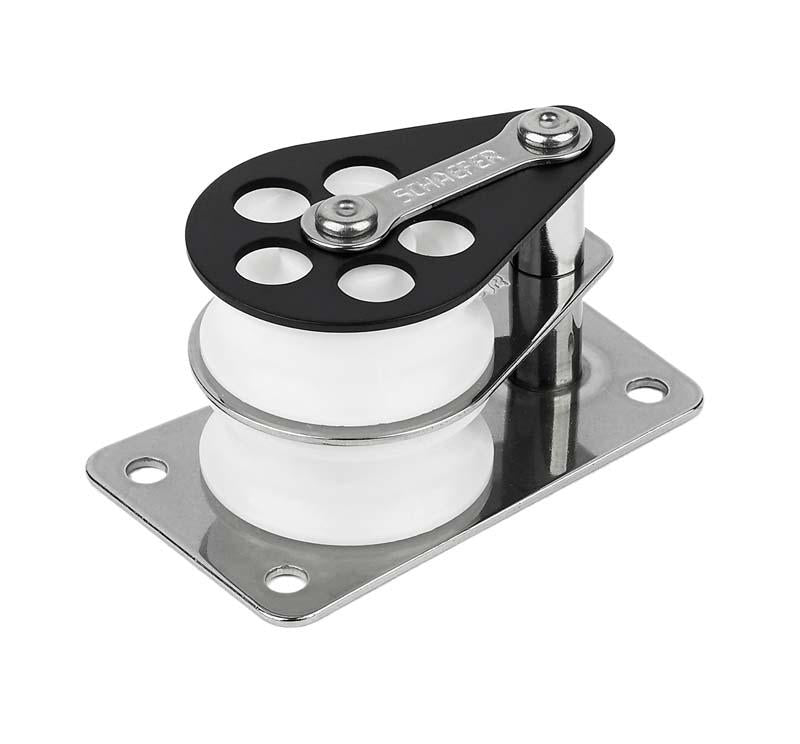

Schaefer Flat Base Double Aluminum 1 7/16" Delrin Sheave Cheek Block

Item #

303-29

Product Description

Schaefer Flat Base Double Aluminum 1 7/16" Delrin Sheave Cheek Block

3 Series Double Cheek Block with anodized Aluminum cheek. Delrin(tm) sheaves ensure smooth operation and high safe working load. Upper sheave safe working load 200 lbs (91 kg), lower sheave 1000 lbs, (450 kg).

Specifications:

  • Sheave Dia.: 1 7/16 in. (37 mm)

  • Max Line: 7/16 in. (11 m)

  • Length: 2 7/8 in. (73 mm)

  • Width: 1 3/4 in. (44 mm)

  • Height: 1 7/16 in. (37 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 2 3/8 in. (60 mm)

  • SWL: 1000 lbs. (450 kg)

  • Weight Alum.: 4.2 oz. (119 g)
