Schaefer Hinged Fairlead/ Ball bearing

Item #

506-32

Product Description

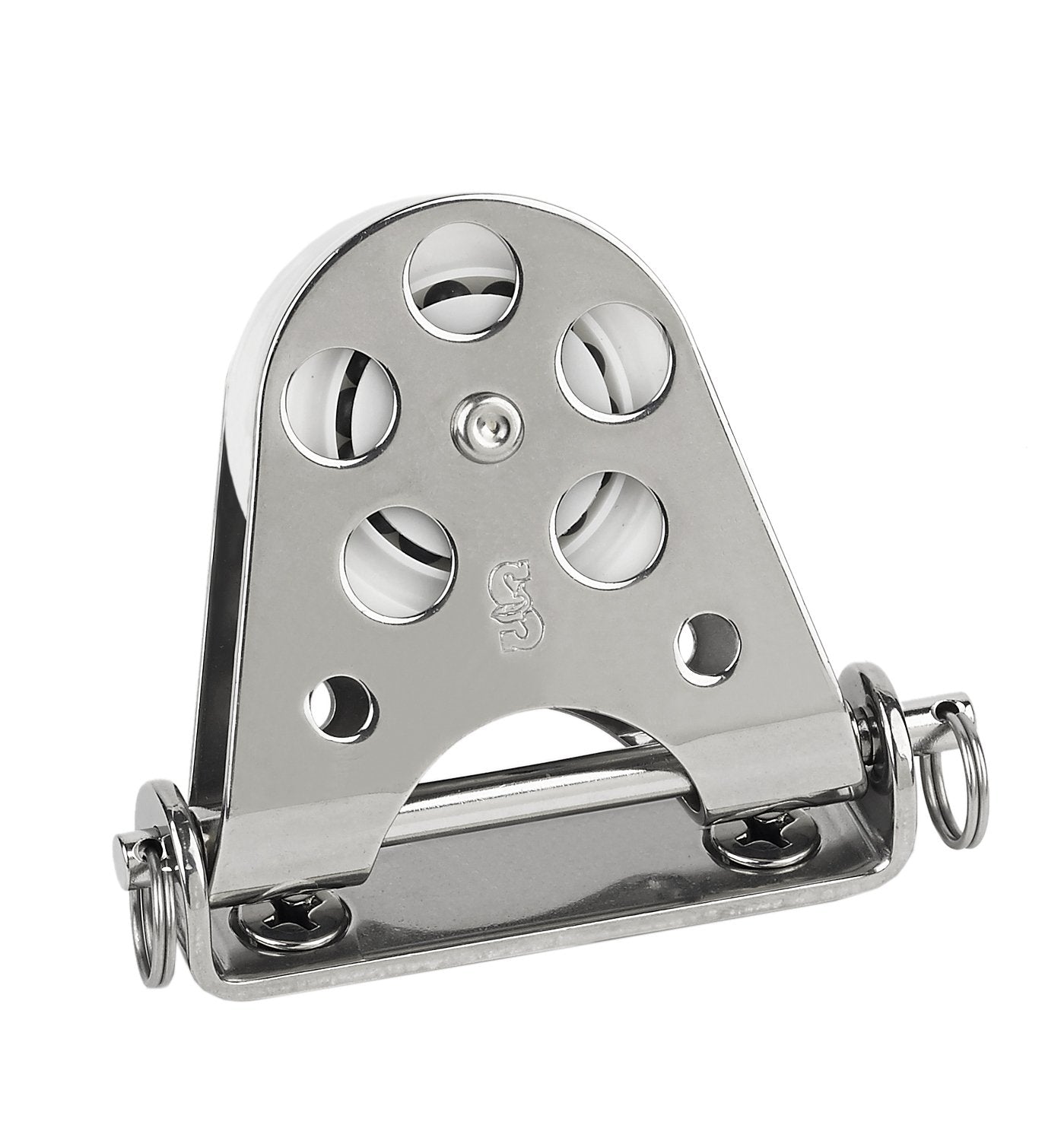

Schaefer Hinged Fairlead/ Ball Bearing

5 Series Hinged fairlead block. Delrin(tm) ball bearing sheave has a low profile keeping control lines/halyards close to the deck on a low-friction sheave. Stainless Steel base and cheeks ensure a strong base. Hinged Lead Block is ideal for a Control Line Lead block on boast to 35' or a Halyard Lead on boats to 27'.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Length: 3 1/4 in. (83 mm)

  • Width: 7/8 in. (22 mm)

  • Height: 3 1/16 in. (78 mm)

  • Bearing Height: 1 3/16 in. (30 mm)

  • Fasteners: (2), 1/4 in. FH (6 MM)

  • C/C: 2 1/8 in. (54 mm)

  • SWL: 1000 lbs. (454 kg)

  • Weight: 7.3 oz. (207 g)
