Schaefer Halyard Lift Turning Block with Delrin

Item #

504-60

Product Description

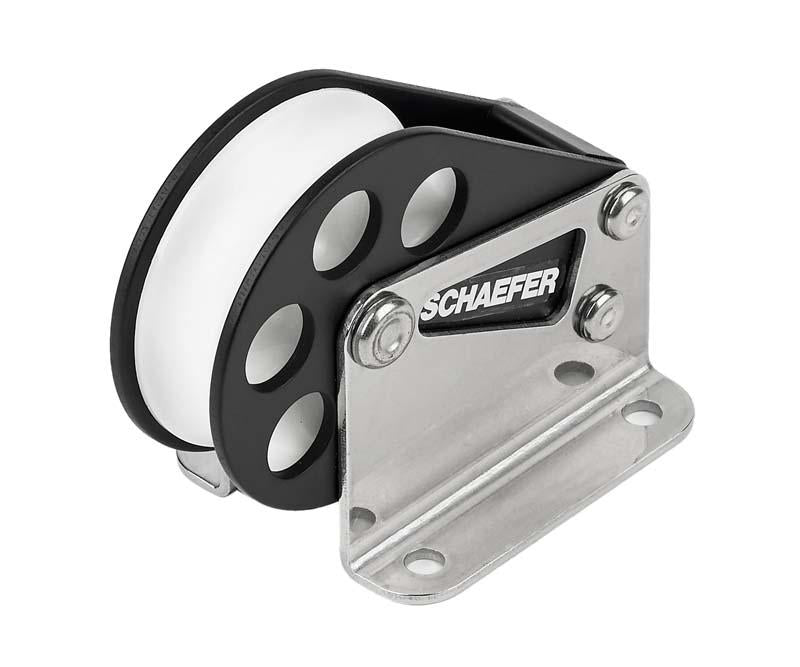

Schaefer Halyard Lift Turning Block w/ Delrin

504-60 Halyard/Control block. Delrin(tm) sheave ensures smooth operation and high strength. Anodized aluminum cheek and stainless steel base provide a solid platform. Block is mounted to bisect load angle for maximum strength.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Jaw Opening: 2 9/32 in. (58 mm)

  • Pin. Dia.: 1 5/16 (49 mm)

  • C/C Length: 1 21/32 (42 mm)

  • Width: 1 5/16 in. (49 mm)

  • Length: 2 9/32 in. (58 mm)

  • SWL: 1750 lbs. (795 kg)

  • Weight: 5.5 oz. (156 g)

  • Max Line: 7/16 in. (11 mm)
