Schaefer Single Block w/Swivel Eye

Item #

02-07

Product Description

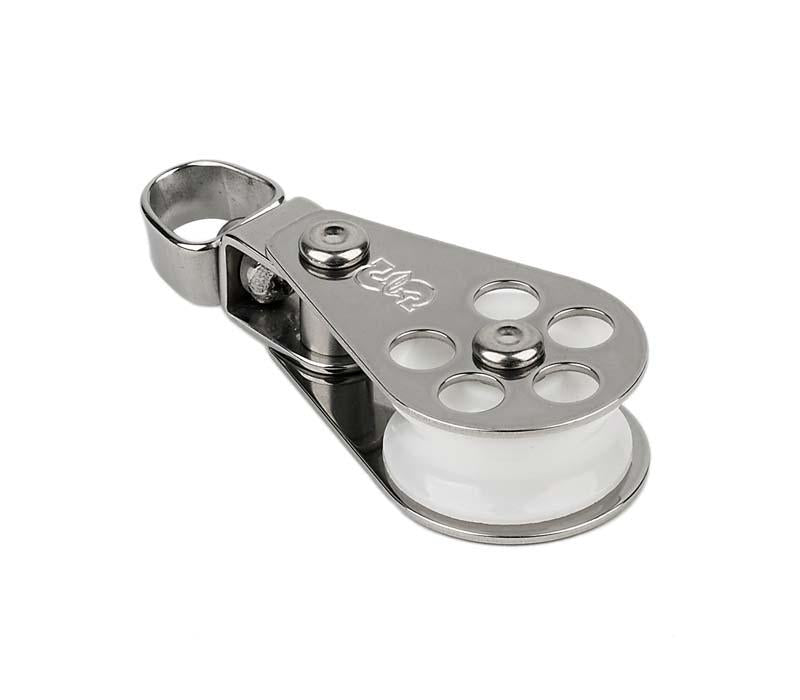

Schaefer Single Block w/Swivel Eye

Single block with swivel eye. Delrin sheave on plain bearing allows for smooth operation and high static safe working loads. For boats to 20'.

Specifications

  • Sheave Dia.: 1 1/16 in. (27 mm)

  • Sheave Width: 3/8 in. (9 mm)

  • Pin Dia.: 3/16 in. (5 mm)

  • Inside Eye Width: 7/16 in. (11 mm)

  • Thickness: 19/32 in. (15 mm)

  • Width: 1 3/16 in. (30 mm)

  • Length: 2 3/4 in. (70 mm)

  • SWL: 900 lbs. (410 kg)

  • Weight: 1.5 oz. (43 g)

  • Max Line: 5/16 in. (8 mm)
