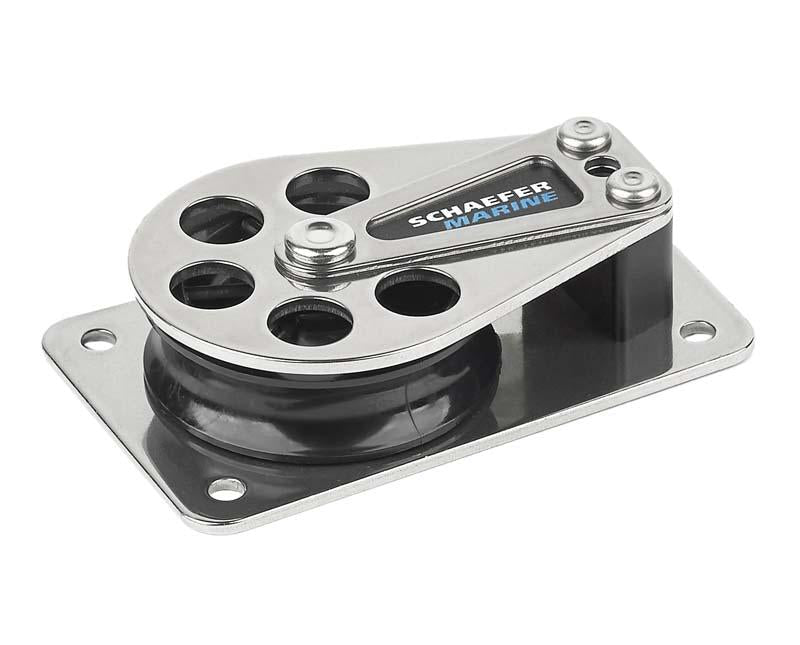

Schaefer Flat Base Cheek Block, Delrin (tm) Sheave

Item #

505-11

Product Description

Schaefer Flat Base Cheek Block, Delrin (tm) Sheave

5 Series Cheek Block with Stainless Steel cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2" (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Width: 2 7/32 in. (57 mm)

  • Length: 3 5/8 in. (92 mm)

  • Height: 7/8 in. (22 mm)

  • Thickness: 15/16 in. (24 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 in. (76 mm)

  • SWL: 1750 lbs. (795 kg)

  • Weight Stain.: 6.9 oz. (237 g)
