Product Description

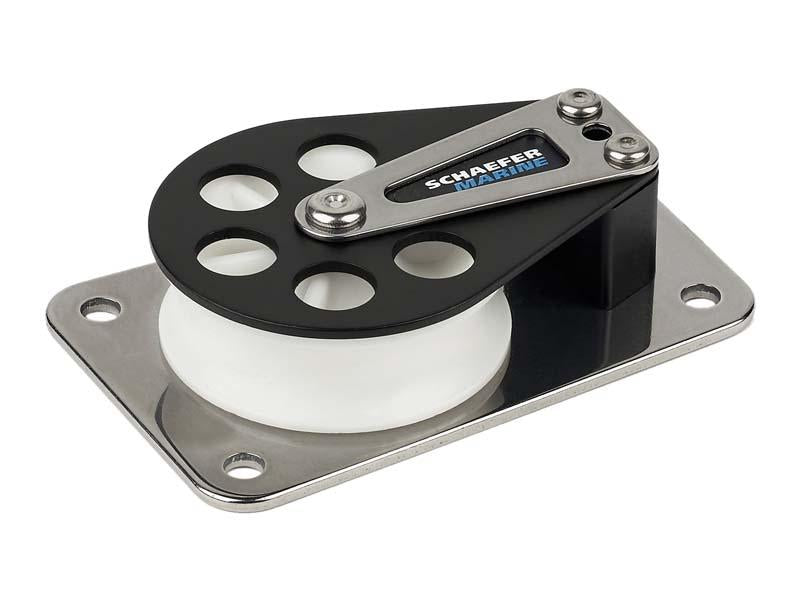

Schaefer Flat Base Aluminum Single Cheek Block
7 Series Cheek Block with anodized Aluminum cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Width: 2 3/4 in. (70 mm)
Length: 4 3/8 in. (111 mm)
Max Line: 1/2 in. (13 mm)
Height: 1 in. (25 mm)
Fasteners: (4) 1/4 in. RH (6)
C/C: 3 5/8 in. (92 mm)
SWL: 2250 lbs (1020 kg)
Weight: 9.6 oz. (272 g)
