Schaefer Stainless Steel Cheek Block with 2 3/8" Aluminum Sheave

Item #

705-10

Product Description

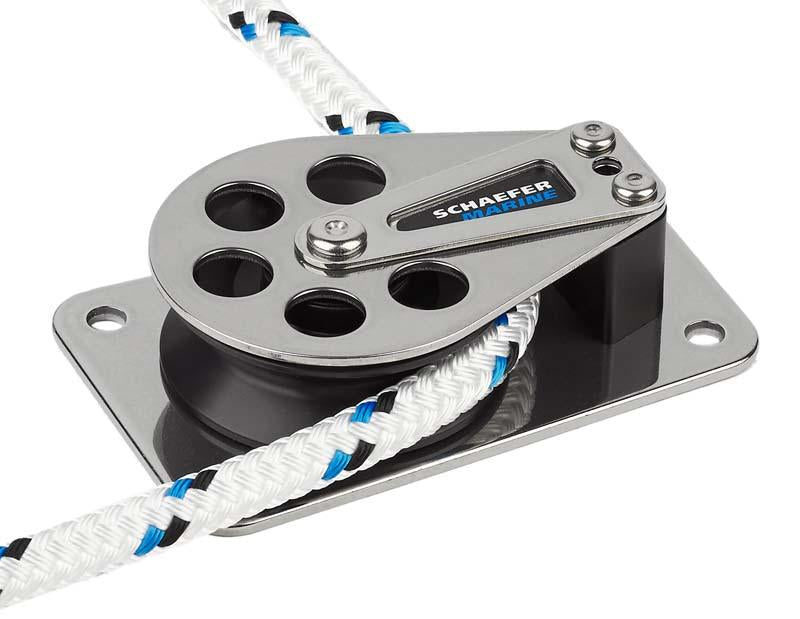

Schaefer Stainless Steel Cheek Block with 2 3/8" Aluminum Sheave

7 Series Cheek Block with anodized Aluminum cheek and aluminum sheave. Aluminum sheave runs on Nomex(tm)/Teflon(tm) bearing for low friction and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Length: 4 3/8 in. (111 mm)

  • Width: 2 3/4 in. (70 mm)

  • Height: 1 in. (25 mm)

  • Fasteners: (4) 1/4 in. RH (6 mm)

  • C/C: 3 5/8 in. (92 mm)

  • SWL: 2250 lbs (1020 kg)

  • Weight Stain: 12.4 oz (351 g)

  • Max Line: 1/2 in. (13 mm)
