Schaefer 2" 5 Series Flat Base w/ Alum. Cheek & Delrin BB Sheave

Item #

506-11

Usually ships within 1-3 days

Product Description

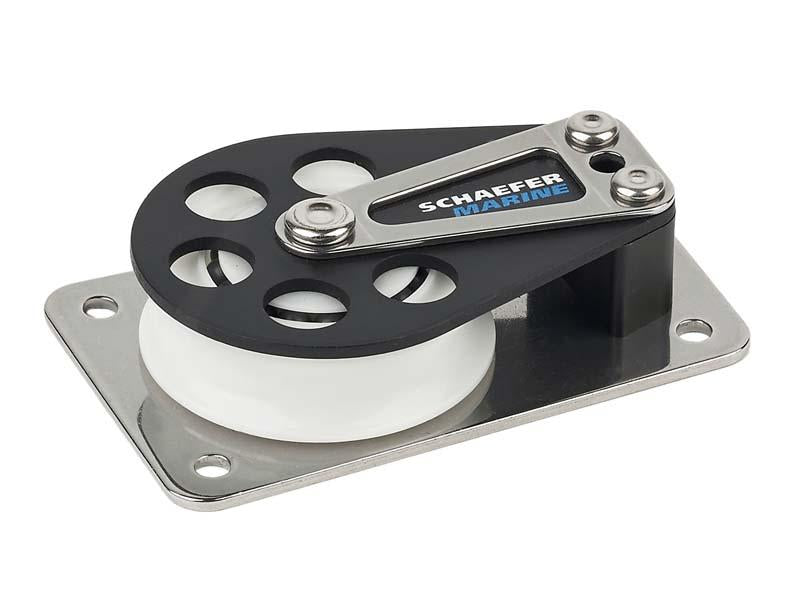

Schaefer 2" 5 Series Flat Base w/ Alum. Cheek & Delrin BB Sheave

5 Series Cheek Block with Anodized Aluminum cheek and Delrin(tm) ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Width: 2 7/32 in. (57 mm)

  • Length: 3 5/8 in. (32 mm)

  • Height: 7/8 in. (22 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 in. (76 mm)

  • SWL: 1500 lbs. (680 kg)

  • Weight alum: 5.9 oz. (167 g)
