Schaefer Flat Base Double Cheek Block

Item #

505-28

Product Description

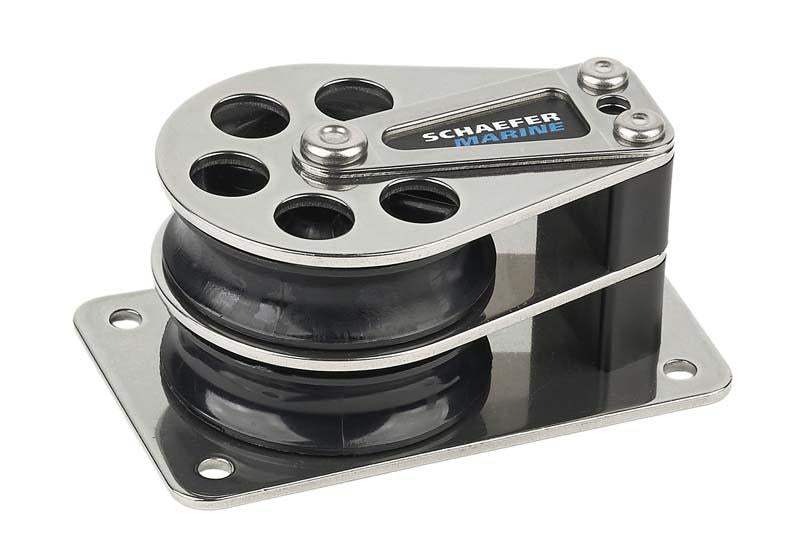

Schaefer Flat Base Double Cheek Block

Double Cheek Block with Delrin Sheaves. Lower Sheave Safe Working Load 1750 lbs, Upper Sheave 350 lbs. Works with #55-60 to fit curved spars.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line Dia.: 7/16 in. (11 mm)

  • Width: 2 7/32 in. (57 mm)

  • Length: 3 5/8 in. (92 mm)

  • Height: 1 19/32 in. (40 mm)

  • Weight stain: 10.7 oz. (303 g)

  • Top Sheave SWL: 350 lbs. (159 kg)

  • SWL: 1750 lbs. (795 kg)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 in. (76 mm)
