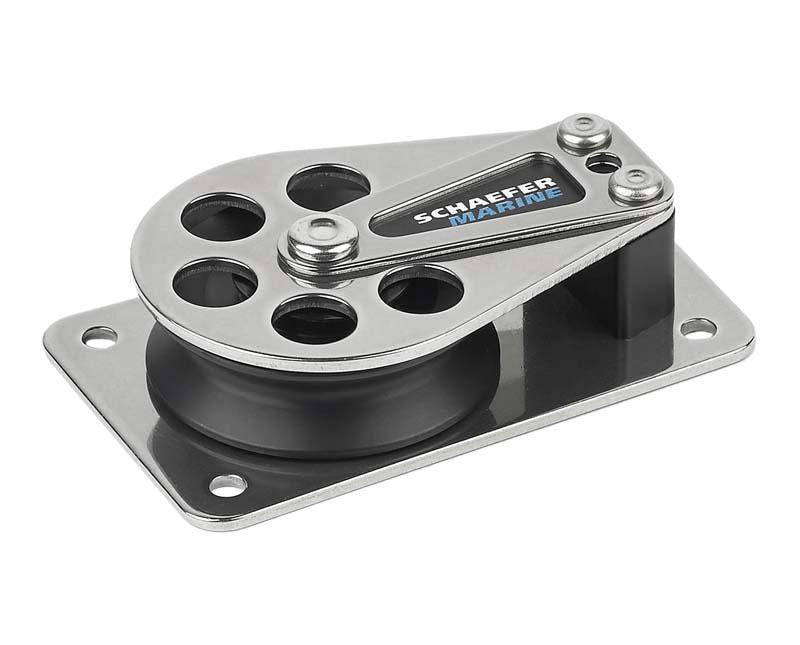

Schaefer Flat Base Aluminum Sheave Cheek Block

Item #

505-10

Product Description

Schaefer Flat Base Aluminum Sheave Cheek Block

S5 Series Cheek Block with Stainless Steel cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Width: 2 7/32 in. (57 mm)

  • Length: 3 5/8 in. (92 mm)

  • Height: 7/8 in. (22 mm)

  • Thickness: 15/16 in. (24 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 in. (76 mm)

  • SWL: 1750 lbs (795 kg)

  • Weight Stain.: 7.5 oz (237 g)
