Schaefer Aluminum Cheek Block with 2" Aluminum Sheave

Item #

504-10

Product Description

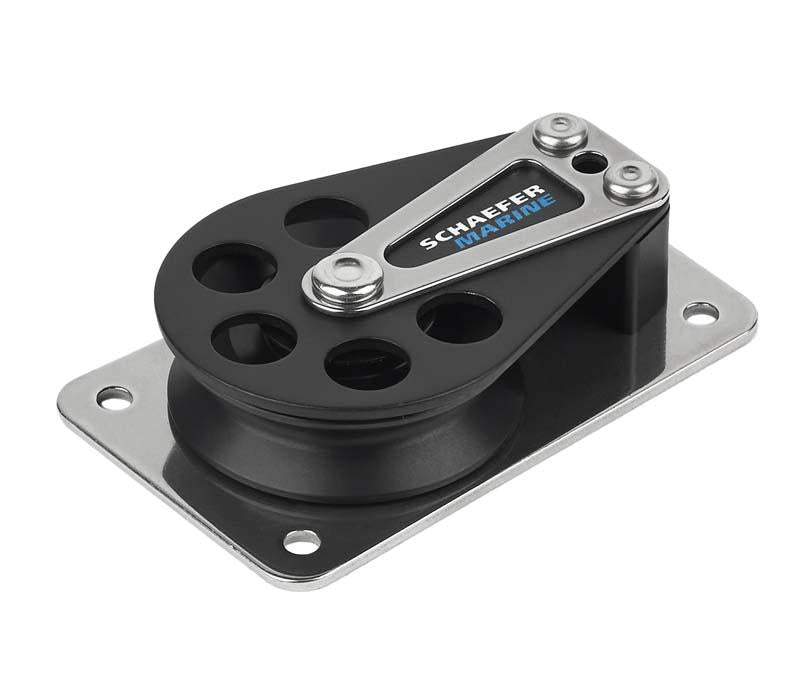

Schaefer Aluminum Cheek Block with 2" Aluminum Sheave

5 Series Cheek Block with anodized Aluminum cheek and aluminum sheave. Aluminum sheave runs on nomex(tm)/Teflon(tm) bearing ensuring smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 m)

  • Length: 3 5/8 in. (92 mm)

  • Width: 2 7/32 in. (57 mm)

  • Height: 7/8 in. (22 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 3 in. (76 mm)

  • SWL: 1750 lbs. (795 kg)

  • Weight Alum.: 6.5 oz. (148 g)
