Product Description

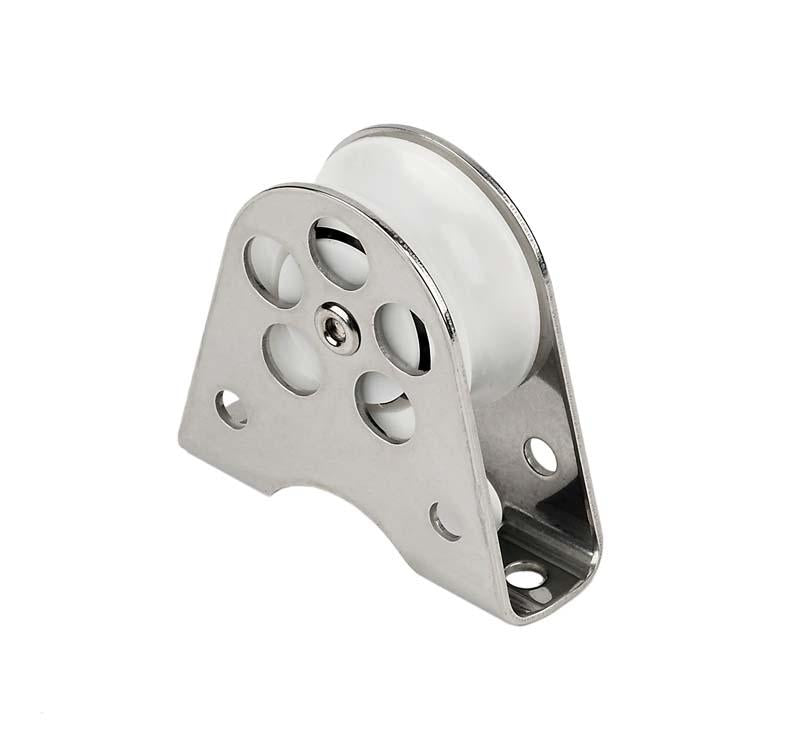

Schaefer Fixed Fairlead/ Ball Bearing Block, Max Line 7/16"
Low Profile design keeps control lines and halyards close to the deck. Delrin(tm) Ball Bearing Sheaves lowers friction. Safe Working Load 1000 lbs.
Specifications:
Sheave Dia.: 1 7/16 in. (37 mm)
Max Line: 7/16 in. (11 mm)
Length: 7/16 in. (11 mm)
Width: 3/4 in. (19 mm)
Height: 1 31/32 in. (50 mm)
Bearing Height: 5/8 in. (16 mm)
Fasteners: (2), #10 RH (5 mm)
C/C: 1 3/4 in. (44 mm)
SWL: 1000 lbs. (454 kg)
Weight: 2.2 oz. (62 g)
