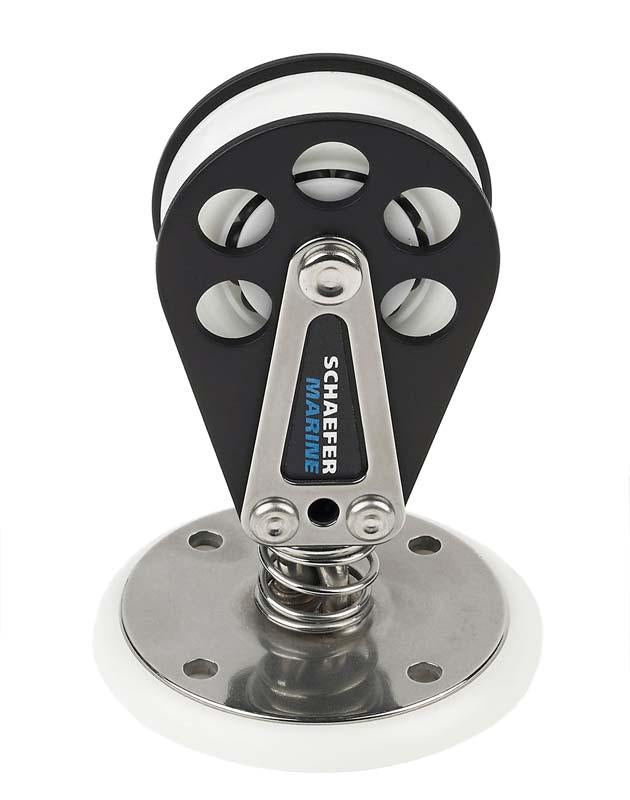

Schaefer Ball Bearing Stand-Up Swivel Block

Item #

506-62

Product Description

Schaefer Ball Bearing Stand-Up Swivel Block

Stand up swivel block with aluminum cheeks and ball bearing sheave. Delrin(tm) ball bearing sheave ensures low-friction. Backing plate ordered separately # 97-48.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Dia. includes urethane base: 2 7/8 in. (73 mm)

  • Height: 4 1/32 in. (103 mm)

  • H2: 2 3/32 in. (54 mm)

  • Fastener Size: (4), #10 RH (5 mm)

  • C/C: 1 13/32 in. (36 mm)

  • SWL 1750 lbs. (790 kg)

  • Weight Alum.: 7.0 oz. (332 g)
