Schaefer Ball Bearing Flat Base Cheek Block, Max Line 7/16"

Item #

300-09

Product Description

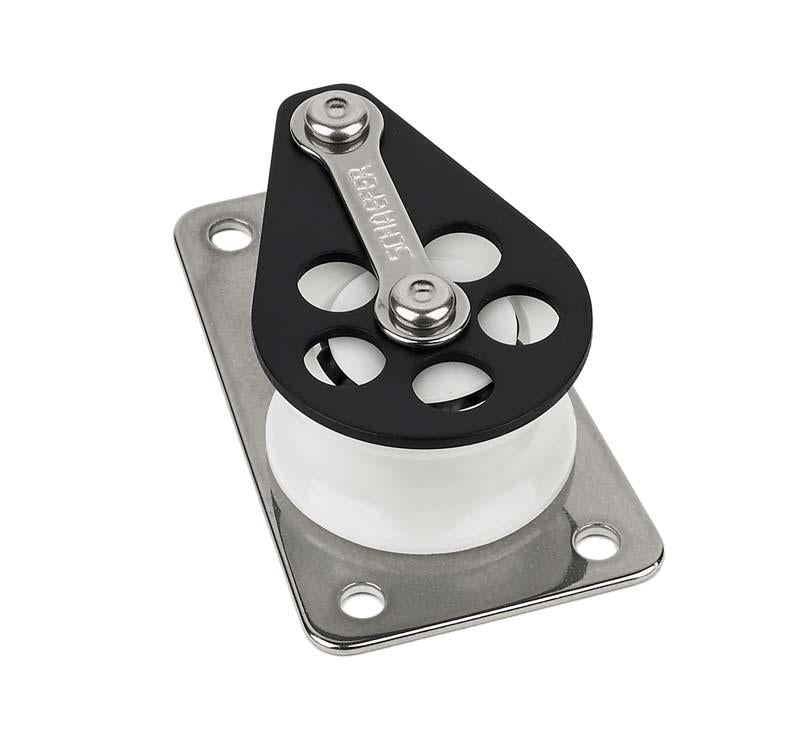

Schaefer Ball Bearing Flat Base Cheek Block, Max Line 7/16"

3 series Ball Bearing Cheek block with anodized aluminum cheek. Delrin(tm) ball bearing block is perfect for control lines under consistent. adjustment. Stainless Steel base provides a strong platform.

Specifications:

  • Ball Brg., Sheave Dia.: 1 7/16 in. (37 mm)

  • Max Line: 7/16 in. (11 m)

  • Length: 2 7/8 in. (73 mm)

  • Width: 1 3/4 in. (44 mm)

  • Height: 3/4 in. (19 mm)

  • Fasteners: (4) #1- RH (5 mm)

  • C/C: 2 3/8 in. (60 mm)

  • SWL: 1000 lbs. (450 kg)

  • Weight Alum.: 2.5 oz. (71 g)
