Schaefer Ball Bearing Fiddle Block

Item #

706-45

Product Description

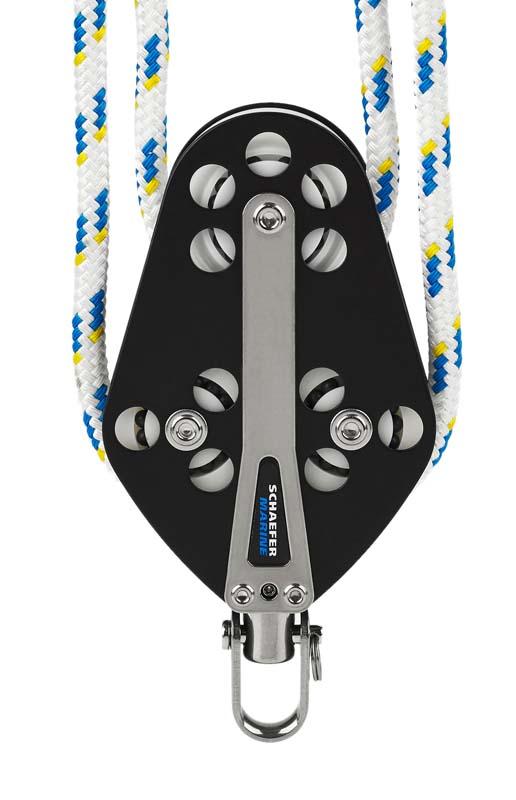

Schaefer Ball Bearing Fiddle Block

Fiddle block with anodized aluminum cheeks and ball bearing sheaves. Works with 706-75 for a 4:1 purchase. Delrin(tm) ball bearing sheaves feature a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Swivel head design may be locked in place to avoid twist.

Specifications:

  • Upper Sheave Dia.: 2 3/8 in. (60 mm)

  • Lower Sheaves Dia.: 1 13/16 in. (46 mm)

  • Sheave Width: 3/4 in. (19 mm)

  • Pin Dia.: 1/4 in. (6 mm)

  • Length: 7 15/32 in. (190 mm)

  • Width: 3 31/32 in. (101 mm)

  • Thickness: 1 3/32 in. (28 mm)

  • SWL: 1700 lbs (771 kg)

  • Weight 14.3 oz (405 g)

  • Max Line: 1/2 in. (13 mm)
