Scanstrut ROKK Midi Adjustable Rail Mount [RL-ARM]

Item #

CWR-56704

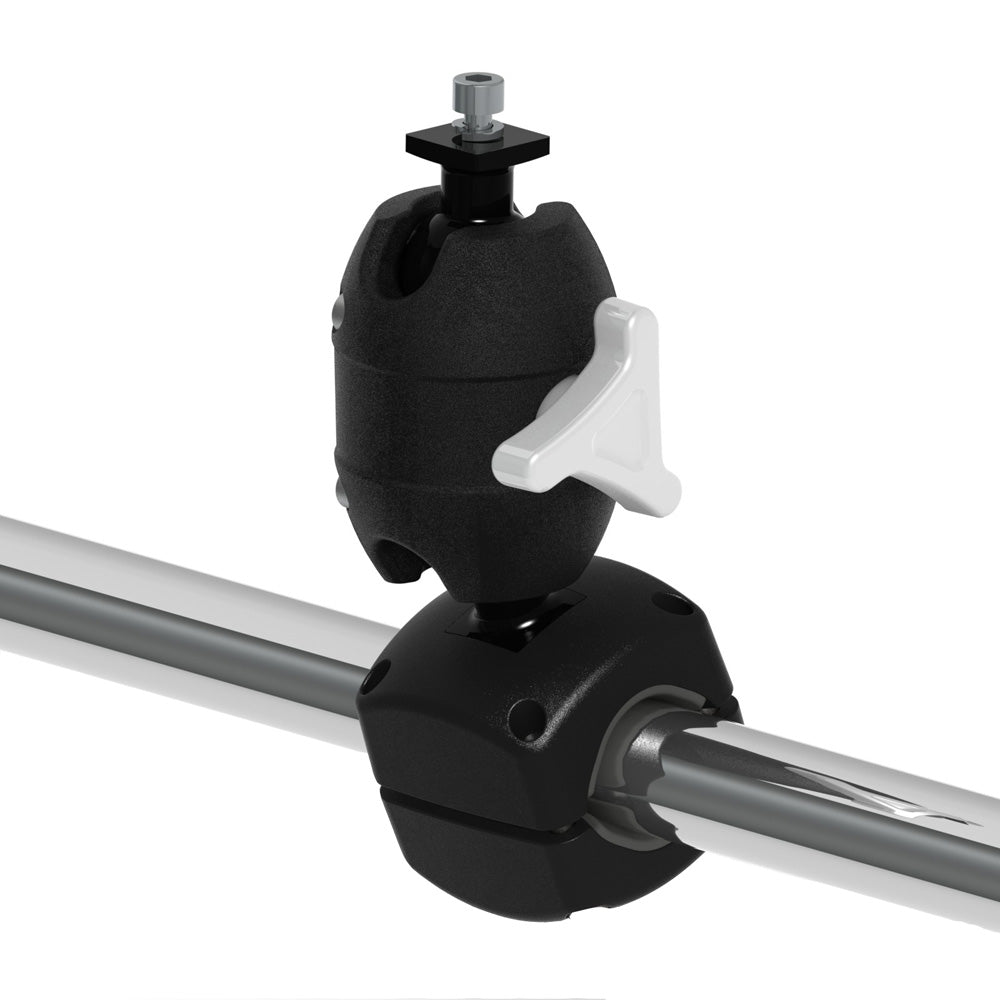

ROKK Midi Adjustable Rail Mount

A fully adjustable anodized aluminium mount that enables you to attach devices directly onto a rail, pushpit or pedestal measuring 1" - 1-1/4" (25.4 to 33.7 mm) in diameter.

Compatible with a range of top plates that enables you to mount marine electronics (sold separately.)

Features:

  • Metal on metal, ball and socket system gives smooth, secure adjustment.  Zero loss of clamping force over time.
  •  360° of rotation. 270° of tilt.  Locking design ensures high clamping force with minimal user effort.
  •  Corrosion-resistant marine-grade aluminum.
  •  Engineered to withstand high shock loading.

Technical Specifications:

  • Material - 316 stainless steel and glass-filled nylon
  • Dimensions - (H x W) - 5.04" x 2.17" (128 x 55 mm)

In the Box:

  • Mount
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

Specifications:

  • Mounting Style: Rail
  • Cut/Uncut: Cut
  • Box Dimensions: 2"H x 3"W x 8"L WT: 1.3 lbs
  • UPC: 819505020327

Quick Guide (pdf)
