Schaefer Double Aluminum Fiddle Block w/Swivel Shackle, Sheave Dia. 1 7/16"

Item #

303-45

Product Description

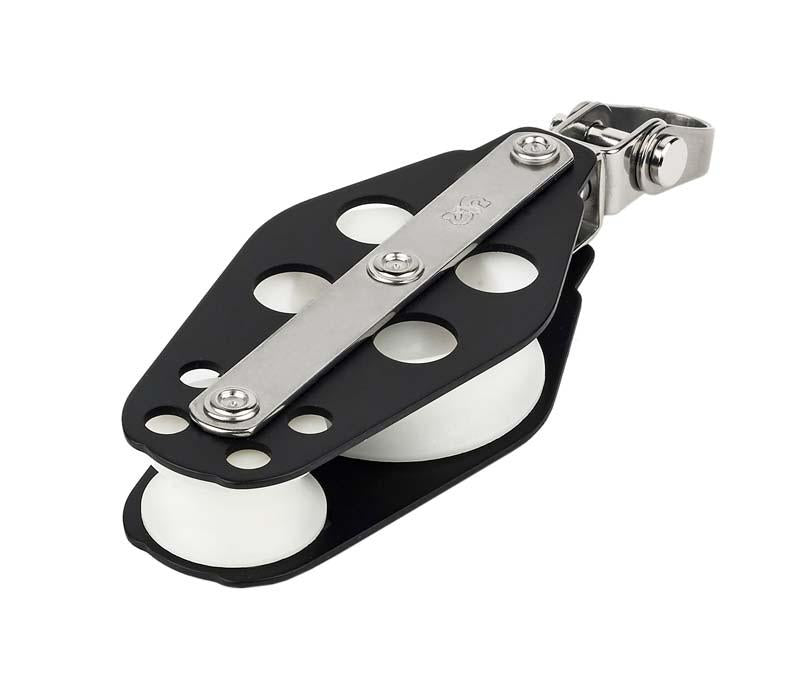

Schaefer Double Aluminum Fiddle Block w/Swivel Shackle, Sheave Dia. 1 7/16"

Fiddle block with aluminum cheeks and swivel shackle. Delrin(tm) sheaves ensure low friction and high safe working load. Works with 303-85 for a 4:1 purchase. For boats to 25', control lines on boats to 30'.

Specifications:

  • Sheave Dia.: 1 7/16 in. (37 mm)

  • Sheave Width: 9/16 in. (14 mm)

  • Pin Dia.: 3/16 in. (5 mm)

  • Thickness: 3/4 in. (19 mm)

  • Width: 1 7/8 in. (48 mm)

  • Length: 5 3/8 in. (137 mm)

  • SWL: 1000 lbs (410 kg)

  • Weight: 4.4 oz. (125 g)

  • Max Line: 7/16 in. (11 mm)
