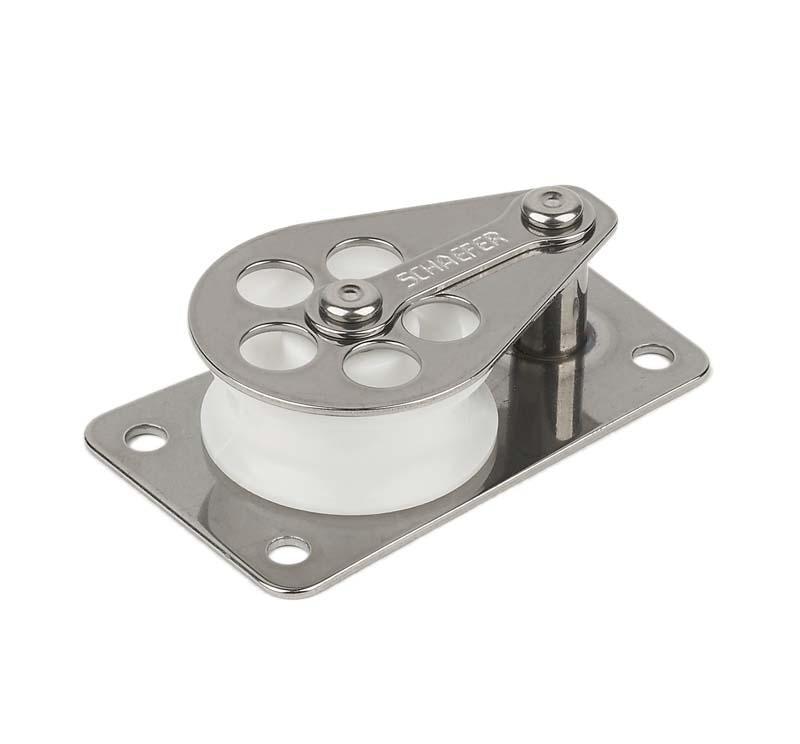

Schaefer Series 3 Flat Base SS Cheek Block

Item #

30-27

Product Description

Schaefer Series 3 Flat Base SS Cheek Block

3 Series Cheek Block with Stainless Steel cheek and base. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 1 7/16 in. (37 mm)

  • Max Line: 7/16 in. (11 mm)

  • Length: 2 7/8 in. (73 mm)

  • Width: 1 3/4 in. (44 mm)

  • Height: 3/4 in. (19 mm)

  • Fasteners: (4) #10 RH (5 mm)

  • C/C: 2 3/8 in. (60 mm)

  • SWL: 1000 lbs. (450 kg)

  • Weight Stain.: 2.6 oz. (74 g)
