Schaefer 7 Series Triple Ball Bearing Sheave Over the Top Block

Item #

706-42

Product Description

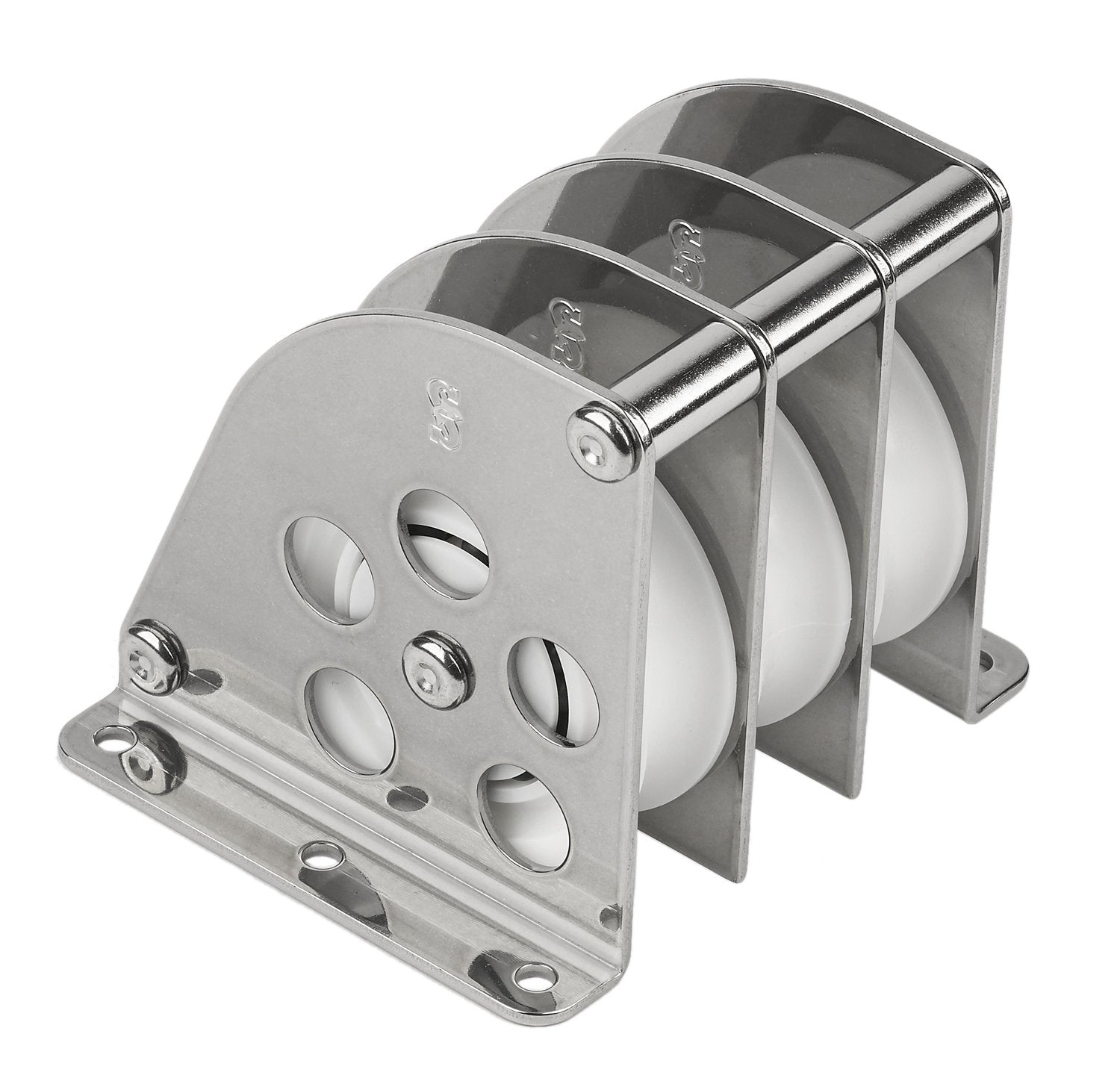

Schaefer 7 Series Triple Ball Bearing Sheave Over the Top Block

7 Series Triple Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.

Specifications

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Max Line Dia.: 1/2 in. (13 mm)

  • Length:3 3/8 in. (86 mm)

  • Width: 4 1/16 in. (104 mm)

  • Overall Height: 3 7/16 in. (87 mm)

  • Sheave Height: 2 5/16 in. (58 mm)

  • Fasteners: (6) #10 (5 mm) RH

  • C/C: 2 13/16 in. (72 mm)

  • Safe Working Load: 1200 lbs. (545 kg.)

  • Weight: 24.4 oz. (692 g.)
