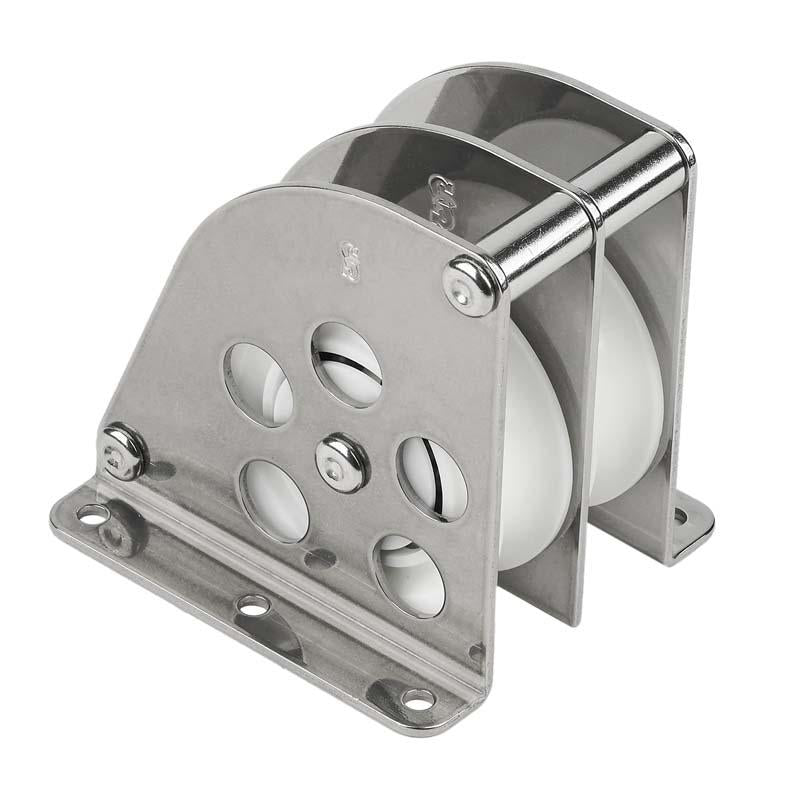

Schaefer 7 Series Double Ball Bearing Sheave Over the Top Block

Item #

706-41

Product Description

Schaefer 7 Series Double Ball Bearing Sheave Over the Top Block

7 Series Double Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.

Specifications

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Max Line Dia.: 1/2 in. (13 mm)

  • Length: 3 3/8 in. (86 mm)

  • Width: 3 5/32 in. (80 mm)

  • Overall Height: 3 7/16 in. (87 mm)

  • Sheave Height: 2 5/16 in. (58 mm)

  • C/C: 2 13/16 in. (72 mm)

  • Fasteners: (6) #10 (5 mm) RH

  • Safe Working Load: 1200 lbs. (545 kg.)

  • Weight: 1 lb. 2 oz. (510 g.)
