Product Description

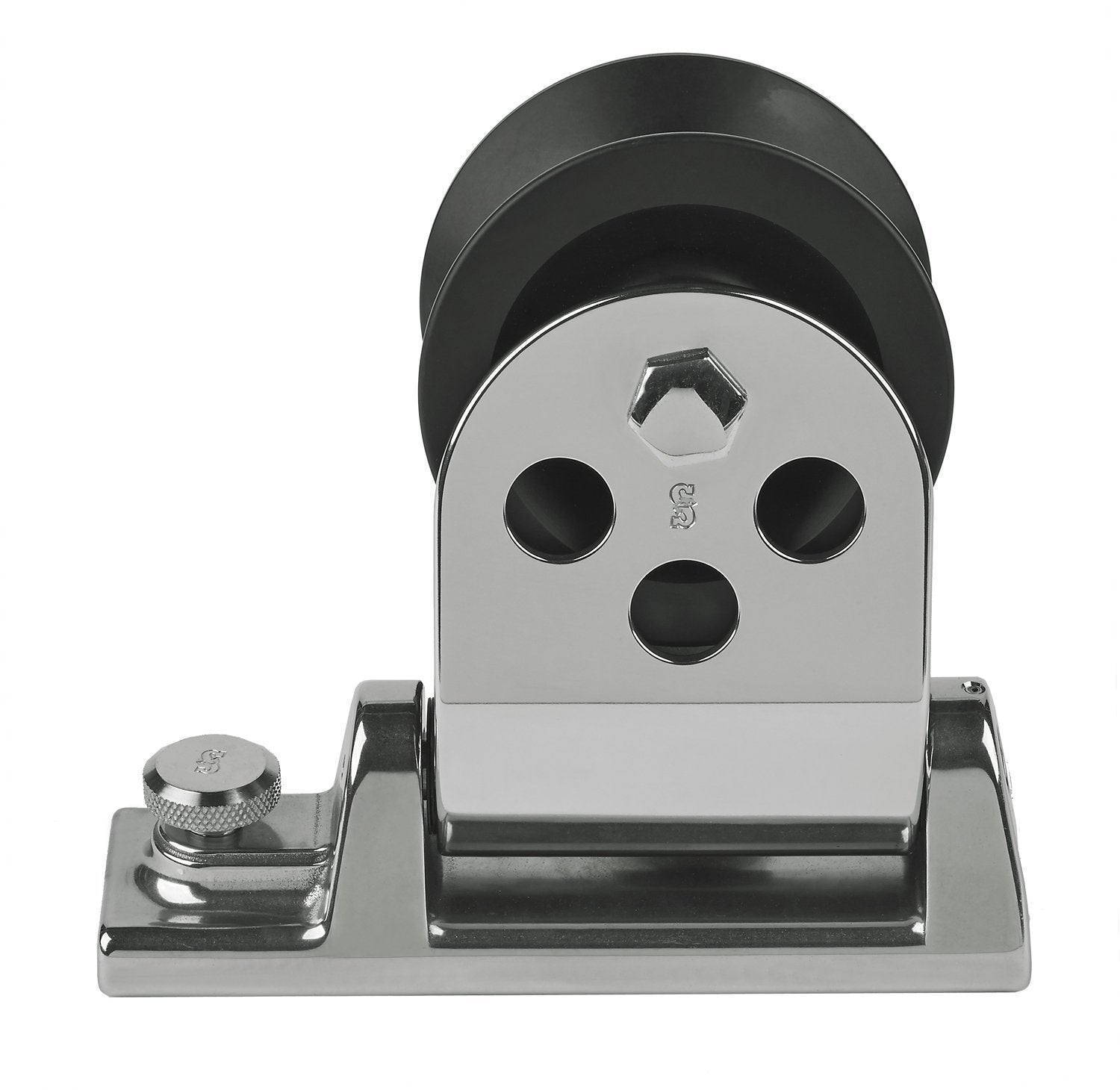

Schaefer 1 1/2" x 1/4" Twin Sheet Lead Block
Our 1-1/2" Twin Sheet Lead Block features a stainless steel body and slider for incredible strength and great looks. The 3-1/2" Aluminum sheave runs on our Nomex(tm)/ Teflon(tm) bearing for strength and low friction . The Stainless Steel screw pin securely locks the car in place. For most boats to 60'(18.3m).
Specifications
Suits Track: 1 1/2"x 1/4" (38mm x 6mm) T-Track
Max Boat LOA: 60" (18.3m)
Max Sail Area: 900 sq. ft. (83.6 sq. m2)
Displ.: 45000 lbs. (20411 kg)
Sheave Dia.: 3 1/2" (89mm)
Max Line Dia.: (2) 7/8" (2 x 22mm)
Length: 6 3/4" (171mm)
Width: 1 15/16" (49mm)
Height: 6 7/32" (166mm)
Bearing Height: 3 13/32" (87mm)
Safe Working Load: 10000 lbs. (4545 kg.)
Weight: 5 lbs. 4 oz. (2.83 kg)
