Product Description

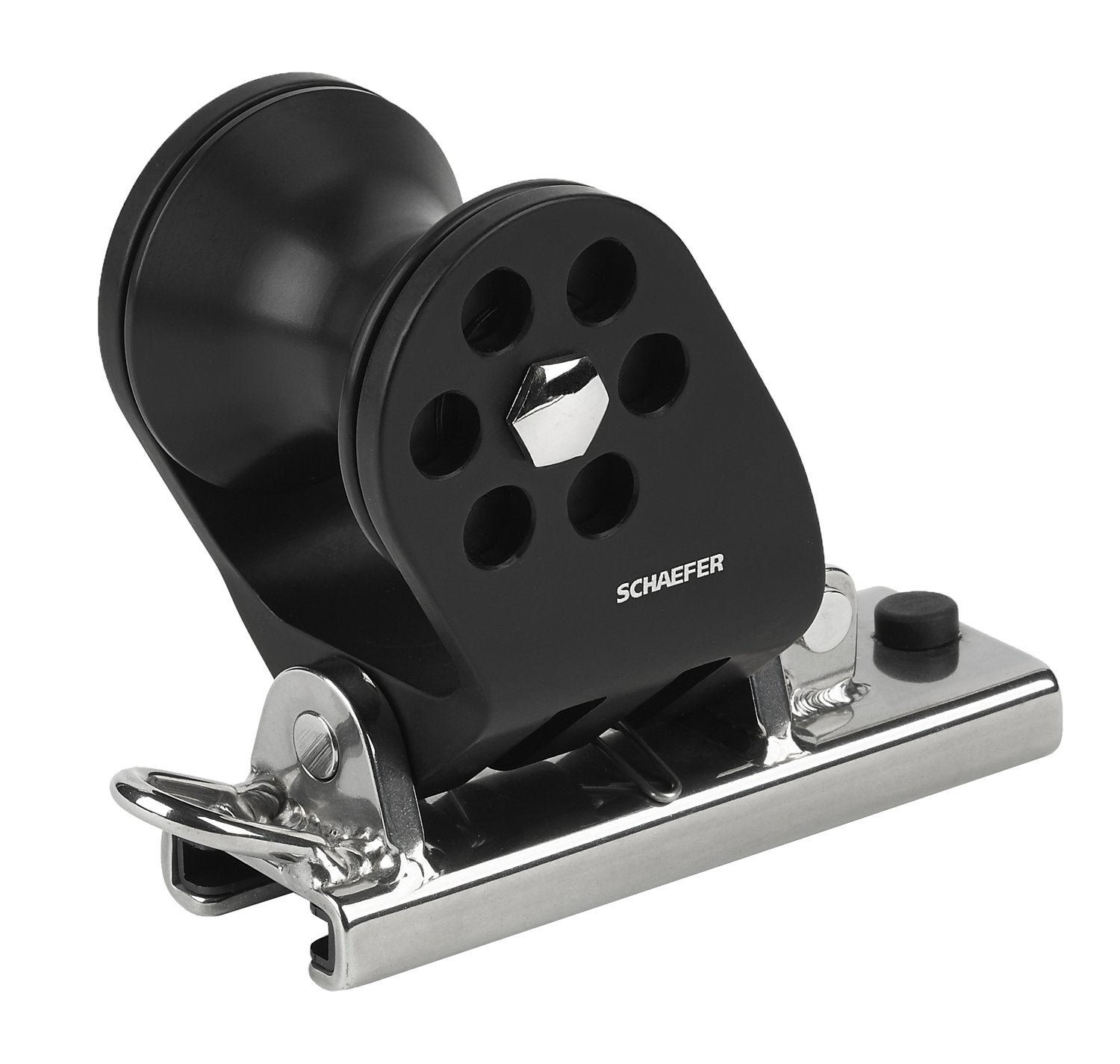

Schaefer 1 1/4" Adj. Twin Sheet Lead Block
17-68 Adjustable lead car for 1-1/4" T-Track. Features Stainless steel slider with polyethylene liners for easy adjustment. Aluminum cage is hardcoat anodized for durability. Aluminum sheave runs on our Nomex(tm) bearing for low friction yet high safe working load. Includes attachment point for a 5 series block on the front and a bail on the back side for adjustability options.
Specifications
Fits track: 1 1/4" x 3/16" (31mm x 4.6mm)
Boat Size: 40', 23000 lbs., 800 sq. ft.
Sheave Dia.: 2" (51mm)
Max Line: 5/8" (16mm)
Length: 5 1/32" (128mm)
Width: 1 9/16" (40mm)
Height: 4 3/8" (111mm)
Bearing Height: 2 9/16" (65mm)
SWL: 2500 lbs. (1590 kg.)
Weight: 1 lbs. (0.72 kg.)
