Schaefer 03-72 Stand Up Spring Block on 3/4" T-Track Slider

Item #

03-72

Usually ships within 1-3 days

Product Description

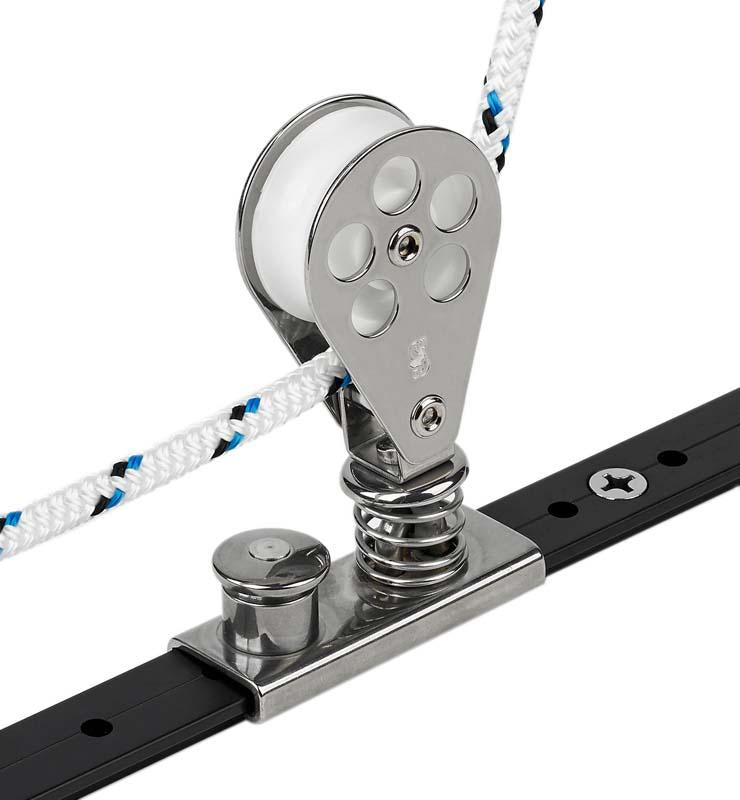

Schaefer 03-72 Stand Up Spring Block on 3/4" T-Track Slider

Stand Up Spring Block on 3/4" T-Track Slider. Delrin(tm) Sheave, SS Spring supports block, Spring Pin locks slide in place. For boats to 20'. Safe Working load 1000 lbs.

Specifications:

  • Track Size 3/4" x 1/8" (19 mm x 3 mm)

  • Boat Size Up To LOA, Displ. Sail Area: 20', 2000 lbs., 225 sq. ft. (6 m, 910 kg, 21 m2)

  • Sheave Dia.: 1 7/16 in. (40 mm)

  • Max Line: 7/16" in. (11 mm)

  • L: 2 1/2 in. (64 mm)

  • W: 31/32 in. (25 mm)

  • H: 3 17/32 in. (90 mm)

  • Bearing Height: 2 5/32 in. (55 mm)

  • SWL: 1000 lbs. (450 kg)

  • Weight: 4.5 oz. (128 g)
