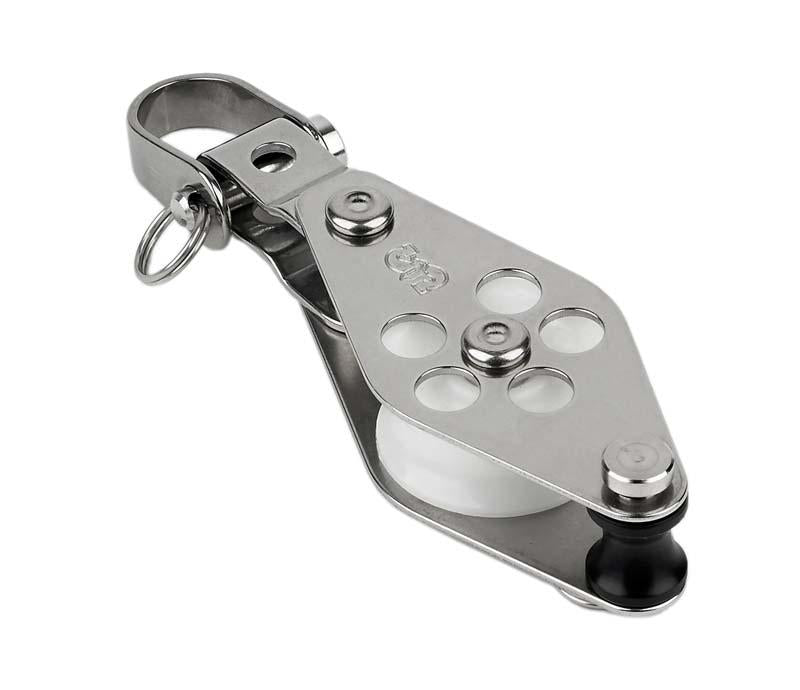

Schaefer Single Block w/Front-Side Shackle & Becket

Schaefer Single Block w/Front-Side Shackle & Becket

Single Block with Front-Side Shackle and Becket. Works with 02-05 for a quick 3:1 purchase. Delrin(tm) sheave on plain bearing provides smooth operation and high safe working loads.

Specifications:

Sheave Dia.: 1 1/16 in. (27 mm)

Sheave Width: 3/8 in. (9 mm)

Pin Dia.: 3/16 in. (5 mm)

Length: 4 5/32 in. (106 mm)

Width: 1 3/16 in. (30 mm)

Thickness: 1 1/8 in. (28 mm)

Max Line Dia.: 5/16 in. (8 mm)

Weight: 3 oz. (85 g)

SWL: 900 lbs. (410 kg)
