Ronstan

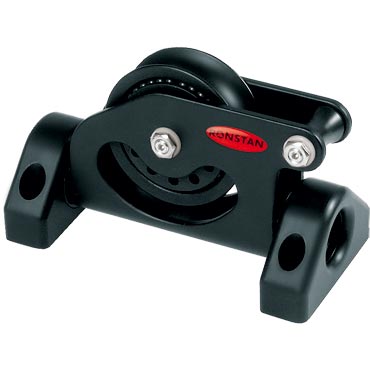

Ronstan Series 60 RB Block, Pivoting Low Lead
Ronstan Series 60 RB Block, Pivoting Low Lead
Regular price
$420.94 USD
Regular price
$550.25 USD
Sale price
$420.94 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Ronstan Series 60 RB Block, Pivoting Low Lead
Product Information
Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.Maintains alignment with a variable line entry-angle. The line passes through the centre of the pivot support, remaining as close to the deck as possible. The self-contained alloy sheave packages provide reliable, low-friction performance at high loads.
Features
- High static and dynamic load capacity
- Keeps lines close to the deck
- Cheek cut-outs for easy bearing cleaning and maintenance
- Blocks can be disassembled for servicing
Specifications
- Sheave Ø - 2 3/8 in.
- Max. Rope Ø - 9/16 in.
- Fastener Ø - 1/4 in.
- M.W.L. - 3310 lb.
- B.L. - 6610 lb.
- Weight - 12.0 oz.
Materials
- Alloy sheave and housing
- Torlon® needle rollers
- Black carbon Acetal ball bearings
