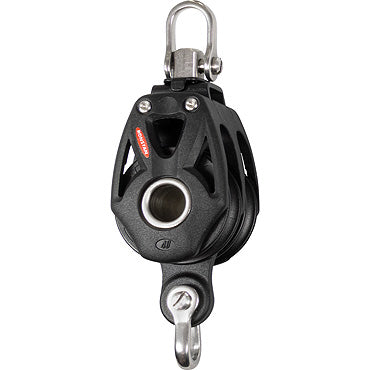

Ronstan Series 40 BB Orbit Double Block w/ Swivel Head & Becket
Class leading dynamic and status load rating
Lightweight, yet strong. Toughened, glass fibre reinforced nylon replaces stainless steel straps used in our traditional utility blocks
Low friction 2-stage ball bearing system for efficient and effortless trimming
Soft attachment, lashing and traditional swivel shackle head options
Low profile and compact
High performance cleating
Sheave Ø - 1 9/16 in. (40mm)
Max. Rope Ø - 3/8 in. (10mm)
Max. Cable Ø - in. (mm)
Pin Ø - 5/32 in. (5mm)
Max. Working Load - 1320 lb. (600kg)
B. L. - 2650 lb. (1200kg)
Weight - 4.6 oz. (130g)
Total block load Becket MWL 200kg (440lb), BL 400kg (880lb)
The new Series 40 ball bearing Orbit Blocks™ provide the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fibre reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.
As well as traditional single swivel blocks, the range also includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is extremely versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the- beach performance catamarans.
Series 40 Orbit Blocks™ are fitted with our carbon reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and are adjustable for setting to your preferred cleating angle.
Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.
High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.
Mainsheet systems on spinnaker sheet on dinghies
Spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft)
Halyard, vang and backstay applications on boats to 9m (30ft)
