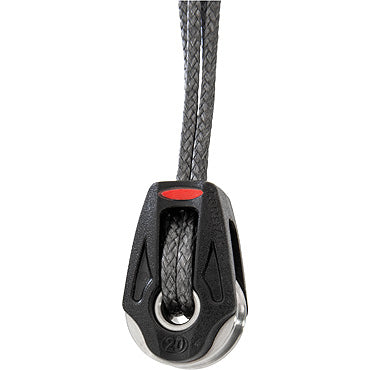

Ronstan Series 20 BB Orbit Block,Single, Lashing,Becket- High Load
Ronstan Series 20 BB Orbit Block,Single, Lashing,Becket- High Load
Regular price
$62.92 USD
Regular price
$82.25 USD
Sale price
$62.92 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Ronstan Series 20 BB Orbit Block,Single, Lashing,Becket- High Load
Product Information
* Block must be lashed through hub. The supplied lashing line must have three passes through head and hub to achieve rated load. MWL & BL are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower BL than the line itself.
Features
- Suits up to 4mm (5/32”) lashing
- Supplied with 750mm (30”) x 2mm (3/32”) diameter
- Dyneema® single braid lashing line
Specifications
- Sheave Ø - 3/4 in.
- Max. Rope Ø - 1/4 in.
- M.W.L. - 660 lb.
- B.L. - 1980 lb.
- Weight - 0.5 oz.
Applications
- Leech / control lines
- Cunninghams
- Ideal for higher load applications
Materials
- Sheave: high compression strength carbon black Acetal
- Frame:/Cheeks: Toughened, glass fibre reinforced Nylon
- Load straps and ball bearings: Grade 316 stainless steel
- HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316
- Frame/Cheeks: Toughened, glass fibre
