Product Description

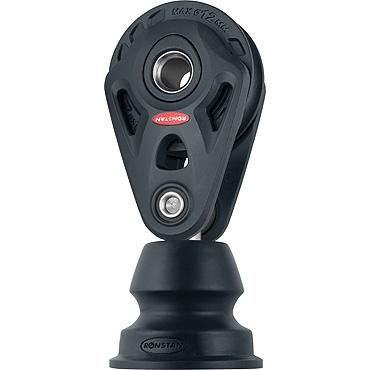

Ronstan 60mm Stand-Up, Swivel Core Block
Features
Class leading performance and sleek, contemporary styling
Excellent dynamic and high static load performance
Less than half the friction of the nearest competitor
Durable aluminum alloy cheek plates
Central hub hole can be used as a becket take-off or tie-up point
Swiveling head post for full 3-axis articulation
Strong precision cast padeye base
Resilient rubber stand-up boot prevents clatter & block falling down when not loaded
Measurements
Sheave Ø - 2 3/8 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø - in
Pin Ø - in.
M.W.L. - 2200 lb.
B. L. - 4410 lb.
Weight - 13.2 oz.
Product Information
Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

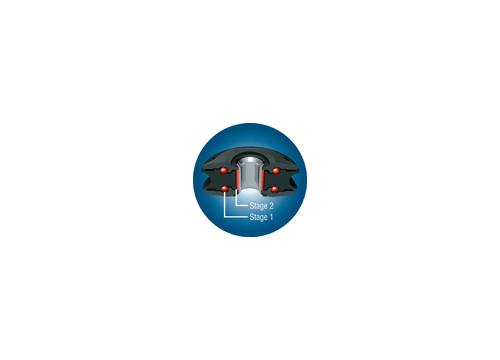

Universal Bearing
Dynamic and high static load performance
The Ronstan Universal Bearing incorporates our proven 2-stage bearing system
Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.
Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.
Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks.

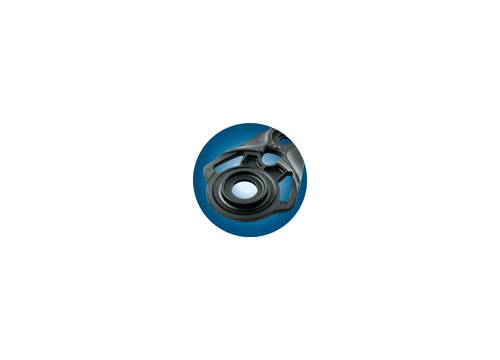

Alloy cheek plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimization and the cut-away design minimizes weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimizing rope wear.

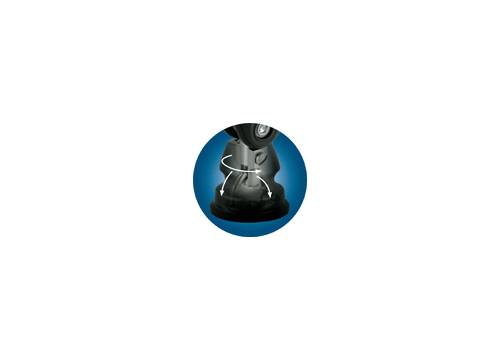

Fully articulated stand-up
Stand-up models have a low profile linkage that provides full rotation and articulation. A high strength precision cast padeye minimizes the footprint and a dedicated rubber boot ensures the block is held upright when not loaded.
Applications
Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 12m (40ft).
Various control line applications on larger yachts.
Alloy sheave models are available for use with wire.
Materials
Sheave: U.V. stabilized Acetal or anodized aluminum (AW models)
Cheek plates: Aluminum alloy
Ball Bearings: High compression strength carbon black Acetal
Post & hub: Grade 316 stainless steel.
Padeye: Grade 15.5PH stainless steel
