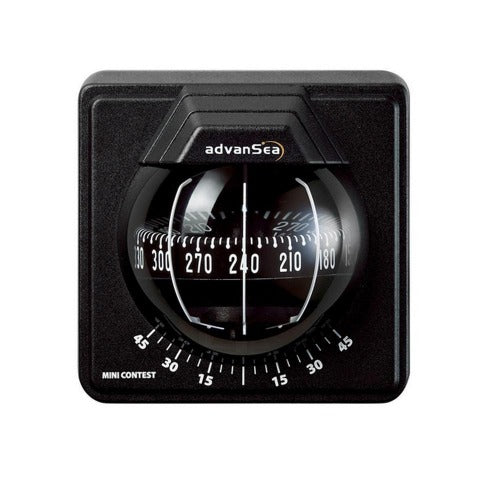

Plastimo Advansea Compass (Mini Contest)Compatible with drilling Ø of former model same size
Sailboats up to 9 m (30 ft).
Compass designed to match ideally the AdvanSea range of electronic instruments. Features a Mini-Contest magnetic cell.

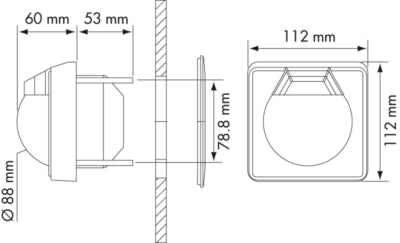

Mounting on vertical bulkhead:
Fits any bulkhead thickness
Standard thickness (40 mm max): compass is secured with threaded rods
thick or double bulkhead : compass is secured with Parker screws on both sides of the bulkhead.
Excellent readability: graduation every 5° and compact figures for easy reading.
Cylindrical card, highly stable, apparent Ø 85 mm.
3 lubber lines: for dependable readings even when steering windward.
One-piece moulded flange and front dome.
Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, thus preventing the formation of bubbles.
All parts fully UV-ray treated.
Scratch resistant dome.
Lighting: 12V bulb integrated in the front flange, spreading the illumination evenly over dome and card, and preventing eye strain and fatigue at night. Easy access to the light bulb from the front of the compass.
