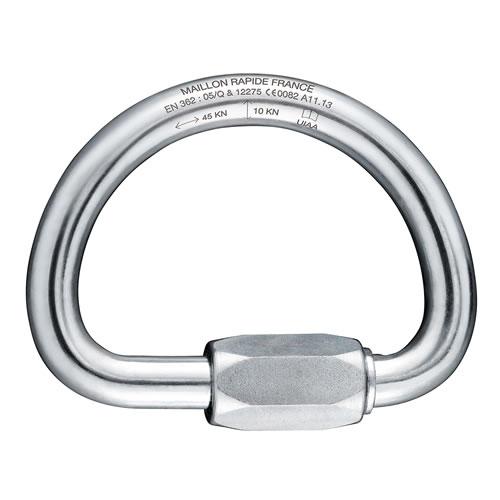

Peguet 10mm (7/16") Zicral PPE Half Moon Maillon Rapide Quick Link

Peguet 10mm (7/16") Zicral PPE Half Moon Maillon Rapide Quick Link

Half Moon Shape: Suitable for the junction of 2 connecting points on a harness

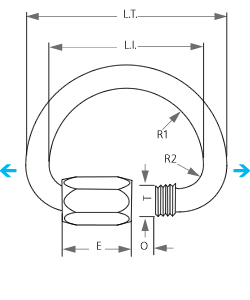

Specifications:

Diameter: 10MM or 7/16"

LT: 86mm

LI: 66mm

O: 10mm

E: 29mm

R1: 33mm

R2: 10mm

T: 13mm

Weight: 55g (0.1212 lbs)

Breaking Load: 25 kN

Material:

Zicral

Rod: 7075 Zinc Aluminum, Alloy Magnesium (AFNOR-USA-GB), Anti-Corrosion, Negligible weight (density 2,80), Totally non-magnetic, Fair Mechanical Strength (25h bar)

Nut: 7075 Zinc Aluminum, Alloy Magnesium (AFNOR-USA-GB), Anti-Corrosion, Negligible weight (density 2,80), Totally non-magnetic, Fair Mechanical Strength (25h bar)

Rod: custom-made steel used in surface processing, providing complete strength towards traction.

Nut: high safety steel (lead-free, systematic control carried out after drawing through Eddy currents and ultrasounds).

Surface processing made through electrolytic coating on the entire material (rod & nut).

Tightening Torque:

ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0

Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00

Recommendation:

Keep to the working load limit WLL engraved in kg.

Visual check of complete nut screwing compulsory; no thread must be showing.

Maillon Rapide quick links are only to be loaded along the major axis.

Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.

When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.

Maillon Rapide should always be fitted with parts made of same material.

When connected with chain, Maillon Rapide quick links should be of the same diameter.

Never connnect any Maillon Rapide quick links onto a lifting chain.

Stainless steel Maillon Rapide quick links may be used in salt water.

P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
