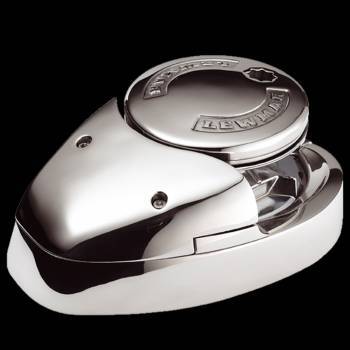

Lewmar V4 Gypsy Only 12V (204)

Lewmar V4 Gypsy Only 12V (204)

Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.

Kit includes: Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

A - 2" (51mm)

B - 2 7/16" (91mm)

C - 7 1/16" (188mm)

D - 7 1/4" (185mm)

E - 3 1/2" (89mm)

F - 10 7/8" (277mm)

G1 - 4 1/4" (107mm)

G2 - 8 7/16" (215mm)

H - 4 7/16" (112mm)

I - 14 7/16" (366mm)

J - 7 5/16" (156mm)

Specifications

Voltage - 12V

Motor Power Watts - 1600W

Normal Current Draw - 125A

Circuit Breaker - 150A

Max Pull - 2750 lbs. (1250 kg)

Max Line Speed - 82ft/min (25m/min)

Working Load - 688 lbs. (313 kg)

Weight Gypsy Only - 64 lbs. (29 kg)

Gypsy Specifications

Gypsy Number - 204

Chain Description - 12mm ISO 4565, 13mm DIN 766

Rope Description - 3/4" (18mm)
