Lewmar V4 Gypsy Drum Only 24V (204)

Lewmar V4 Gypsy Drum Only 24V (204)

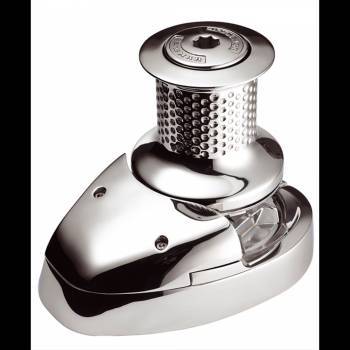

Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.

Kit includes: Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

A - 2" (51mm)

B - 2 7/16" (91mm)

C - 7 1/16" (188mm)

D - 7 1/4" (185mm)

E - 3 1/2" (89mm)

F - 10 7/8" (277mm)

G1 - 4 1/4" (107mm)

G2 - 8 7/16" (215mm)

H - 4 7/16" (112mm)

I - 14 7/16" (366mm)

J - 7 5/16" (156mm)

Specifications

Voltage - 24V

Motor Power Watts - 2000W

Normal Current Draw - 70A

Circuit Breaker - 110A

Max Pull - 3300 lbs. (1500 kg)

Max Line Speed - 90ft/min (27m/min)

Working Load - 825 lbs. (375 kg)

Weight Gypsy Only - 79 lbs. (36 kg)

Gypsy Specifications

Gypsy Number - 204

Chain Description - 12mm ISO 4565, 13mm DIN 766

Rope Description - 3/4" (18-20mm)
