Lewmar V3 Gypsy w/ FastFit 12V (002)

Item #

6672211108-139

$3,049.80 $4,840.95 You Save 36% ($1,791.15)

Usually ships within 1-3 days

Product Description

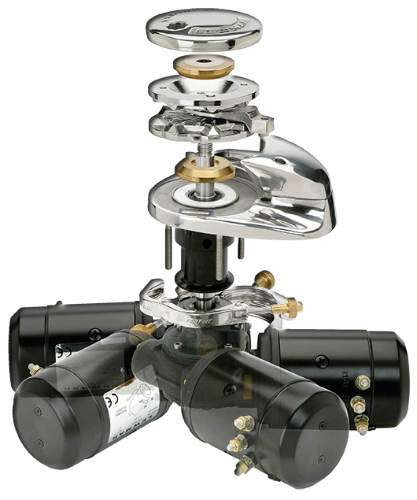

Lewmar V3 Gypsy w/ FastFit 12V (002)

Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

A - 1 11/16" (42mm)

B - 3" (75mm)

C - 6 5/16" (161mm)

D - 13 3/4" (348mm)

E - 6 3/16" (157mm)

F - 2 3/4" (70mm)

G - 9 1/8" (237mm)

H1 - 3 5/8" (92mm)

H2 - 6 5/8" (168mm)

I - 4 1/4" (114mm)

J - 12 13/16" (310mm)

K - 6 13/16" (173mm)

Specifications

Model - V3

Motor Power Watts - 1000W

Normal Current Draw - 85A

Circuit Breaker - 110A

Max Pull - 1962 lbs. (890 kg)

Max Line Speed - 92ft/min (28m/min)

Working Load - 473 lbs. (215 kg)

Normal Line Speed - 92 ft. (28m)

App. Weight Gypsy Only - 47 lbs. (21.5 kg)

Gypsy Specifications

Gypsy Number - 002

Chain Description - 10mm DIN 766, Campbell 3/8" S4

Rope Description - 1/2"-5/8" (12-16mm) 3-strand and 8-plait (5/8" Only)

Cable Sizes

Voltage - 12V

Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 6 AWG (16mm²) 2 AWG (25mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current Rating for Switch Wire - 5A
