Lewmar V1 Gypsy Only 12v Windlass

Item #

6671011107-138

$1,973.76 $3,132.95 You Save 36% ($1,159.19)

Usually ships within 1-3 days

Product Description

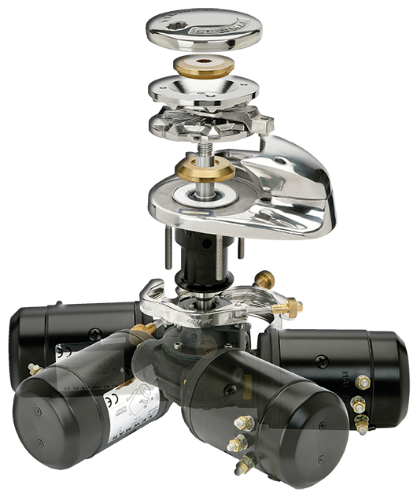

Lewmar V1 Gypsy Only 12v Windlass

Rope-chain gypsy

Manual chain release (Free Fall)

Cone clutch for smooth, easy control

Optional manual override motor gearbox

W.A.R.P Drum

Fall safe anchor lock

Robust/reliable worm gearbox

FastFit equipped for quicker installation and less hassle

Emergency recovery kit available

IP68 kits available

For Boats up to 12m (40ft)

Dimensions

A - 1 11/16" (42mm)

C - 6 5/16" (161mm)

E - 6 3/16" (157mm)

F - 2 3/4" (70mm)

G - 9 1/8" (237mm)

H - 3 5/8" (92mm)

I - 4 1/4" (114mm)

J - 12 3/16" (310mm)

K - 6 13/16" (173mm)

Specifications

Model - V1

Motor Power Watts - 700W

Normal Current Draw - 80A

Circuit Breaker - 90A

Max Pull - 700 lbs. (454 kg.)

Max Line Speed - 65ft/min (19m/min)

Working Load - 250 lbs. (113 kg)

Normal Line Speed - 43ft. (13m)

Weight Gypsy Only - 36 lbs. (16.5 kg)

Gypsy Specifications

Gypsy Number - 000

Chain Description - 7mm ISO 4565, 1/4" G40*, 1/4" BBB

Rope Description - 1/2" (12-14mm) 3-Strand & 8-plait

Cable Sizes

Voltage - 12v

Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 6 AWG(10mm²) 4 AWG(25mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current Rating for Switch Wire - 5A
