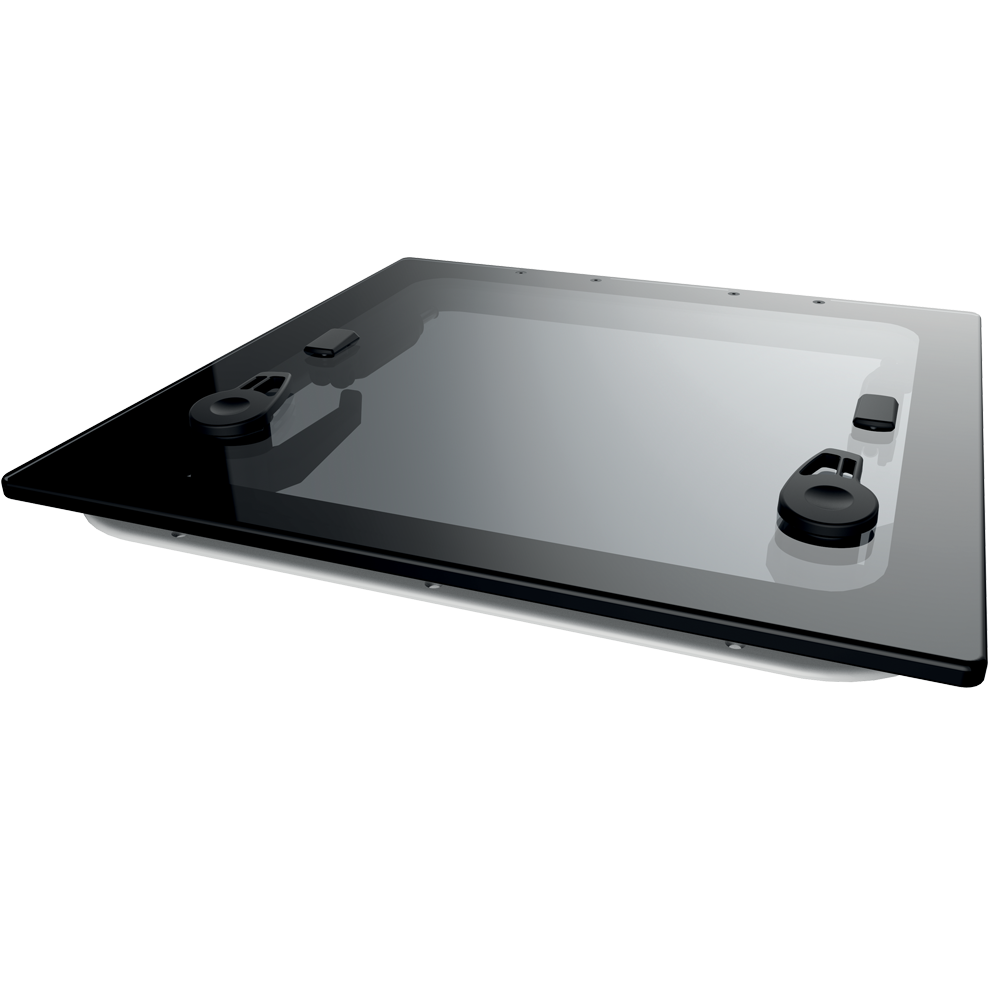

Lewmar Size 70 Flush Mount Hatch (Dark Grey Acrylic)

Lewmar Size 70 Flush Mount Hatch (Dark Grey Acrylic)

Opening on the flush hatch is restricted to around 90 degrees. The hatch is only supplied with Power Boat stay(s).

Standard Color Specifications:

Dark Grey acrylic, white lower frame

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6/ 1/4"). Fastening size for lower frame use 5mm CSK screw No. 10 UNC 2 BA

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Specifications

Support System - 2 x Stay

Lower Frame (in) - 9/16

Acrylic Window Thickness (in) - 9/16

Dimensions

Length X (in) - 27 1/2

Width Y (in) - 27 1/2

Height Z (in) - 1 1/4

Radii R (in) - 3/8

Cut-Out Length X1 (in) - 24 11/16

Cut-Out Width Y1 (in) - 24 11/16

Cut-Out Radii R1 (in) - 11 1/16
