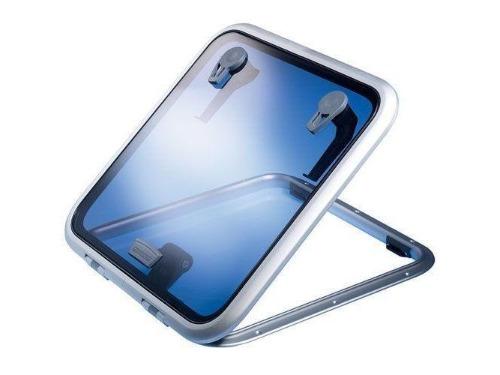

Lewmar Size 65 Low Profile Self Supporting Hatch

Lewmar Size 65 Low Profile Self Supporting Hatch

Size 65 Low Profile Hatches are made to order. All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Specifications

Support System - Self Supporting

Lower Frame (in) - 9/16

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 14.3

Acrylic Window Thickness (in) - 3/8

Dimensions

Length X (in) - 22 11/16

Width Y (in) - max 26 9/16 min 22 1/16

Height Z (in) - 1

Radii R (in) - 2 7/8

Cut-Out Length X1 (in) - See Manual

Cut-Out Width Y1 (in) - See Manual

Cut-Out Radii R1 (in) - 1 11/16
