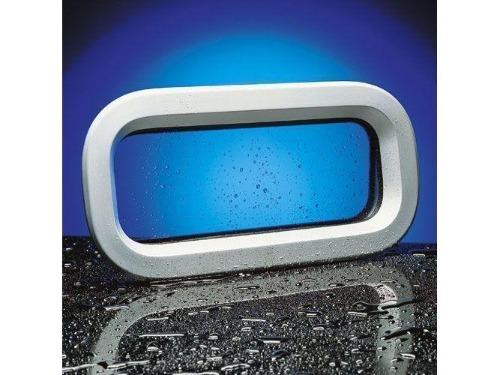

Lewmar Size 40 Atlantic Portlight

Item #

39140070

$845.57 $1,207.95 You Save 29% ($362.38)

Usually ships within 1-3 days

Product Description

Lewmar Size 40 Atlantic Portlight

Specifications

Hull Valance - Thick

Version - Opening

Acrylic Color - Smoke Grey

Frame Color - Silver

Hatch Weight (lb) - 5.5

Acrylic Window Thickness (in) - 5/16

Dimensions

Overall Width X (in) - 7 7/8

Overall Length Y (in) - 18 7/8

Overall Height Z (in) - 1/4

Overall Radii R (in) - 2 13/16

Cut-Out Width X1 (in) - 7 1/16

Cut-Out Length Y1 (in) - 18 1/8

Cut-Out Radii R1 (in) - 2 3/8

Notes:

Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm

Smoke grey acrylic and silver anodized frames

Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115

Thick Hull Valance Fastening Required

Hull thickness 16-19mm: M5 x 20mm long (kit ref 360362999)

Hull thickness 20-24mm: M5 x 25mm long (kit ref 360361999)

Supplied as standard with thick hull valances

Fastening kits supplied in bag of 100
