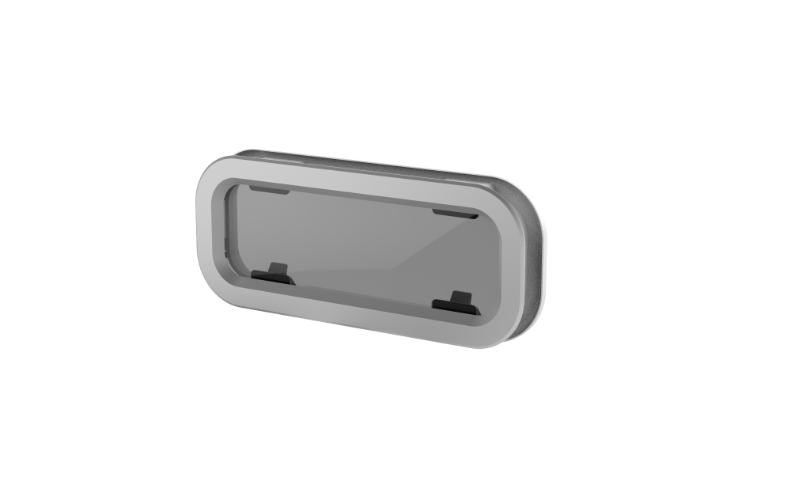

Lewmar Size 3 Standard Portlight

Item #

393320200

Usually ships within 1-3 days
Color : White
White
Ivory

Product Description

Lewmar Size 3 Standard Portlight

Specifications

  • Acrylic color - Smoke Grey

  • Version - Opening

  • Weight (lb) - 3.74

  • Acrylic Window Thickness (in) - 3/8

    Dimensions

  • Overall Width X (in) - 7 1/2

  • Overall Length Y (in) - 17 11/16

  • Overall Height Z (in) - 5/32

  • Overall Radii R (in) - 2 7/16

  • Cut-Out Width X1 (in) - 6 3/4

  • Cut-Out Length Y1 (in) - 16 7/8

  • Cut-Out Radii R1 (in) - 2 1/16

    Installation

  • Fast and easy installation with no complicated cut-out shape.

  • Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

  • Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)

  • Acrylic color is Smoke Grey

  • All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)

  • Design category A - Sail & Power, Area 2 CE Approved
