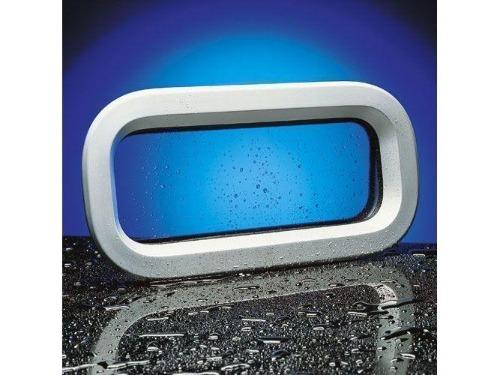

Lewmar Size 32 Atlantic Portlight

Item #

39132090

$571.87 $816.95 You Save 29% ($245.08)

Usually ships within 1-3 days

Product Description

Lewmar Size 32 Atlantic Portlight

Specifications

Hull Valance - Thin

Version - Opening

Acrylic Color - Smoke Grey

Frame Color - Silver

Hatch Weight (lb) - 4.6

Acrylic Window Thickness (in) - 5/16

Dimensions

Overall Width X (in) - 7 7/8

Overall Length Y (in) - 15 3/4

Overall Height Z (in) - 1/4

Overall Radii R (in) - 3 15/16

Cut-Out Width X1 (in) - 7 1/16

Cut-Out Length Y1 (in) - 14 15/16

Cut-Out Radii R1 (in) - 3 9/16

Notes:

Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm

Smoke grey acrylic and silver anodized frames

Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115

Thin Hull Valance Fastening Required

Hull thickness 8-10mm: M5 x 12mm long (kit ref 360360999)

Supplied as standard with thin hull valances

Hull thickness 11-15mm: M5 x 16mm long (kit ref 360361999)

Fastening kits supplied in bag of 100
