Lewmar Size 2 Standard Portlight

Item #

393220200

$357.67 $510.95 You Save 29% ($153.28)

Usually ships within 1-3 days

Product Description

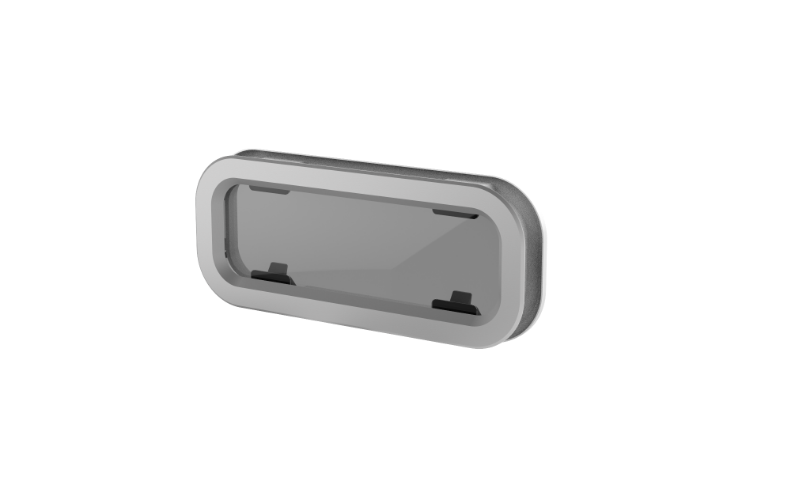

Lewmar Size 2 Standard Portlight

Specifications

Acrylic color - Smoke Grey

Version - Opening

Weight (lb) - 3.08

Acrylic Window Thickness (in) - 5/16

Dimensions

Overall Width X (in) - 6 15/16

Overall Length Y (in) - 16 3/4

verall Height Z (in) - 5/32

Overall Radii R (in) - 2 7/16

Cut-Out Width X1 (in) - 6 1/8

Cut-Out Length Y1 (in) - 15 15/16

Cut-Out Radii R1 (in) - 2 1/16

Installation

Fast and easy installation with no complicated cut-out shape.

Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)

Acrylic color is Smoke Grey

All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)

Design category A - Sail & Power, Area 2 CE Approved
