Lewmar Size 20 1" Flange Ocean Hatch

Lewmar Size 20 1" Flange Ocean Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

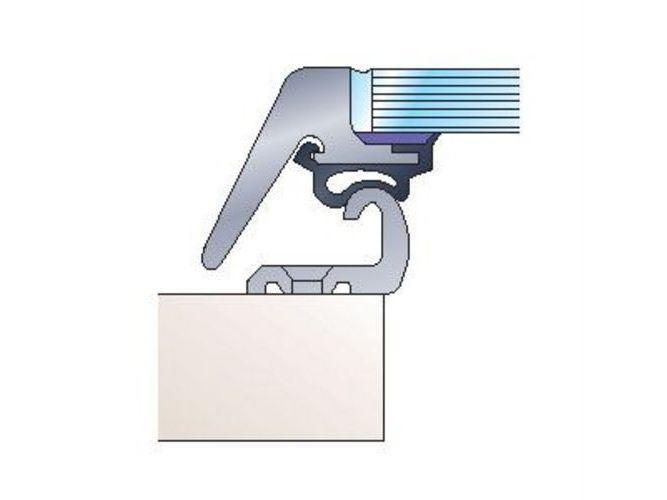

Lower Frame (in) - 1" Flange

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 6.04

Acrylic Window Thickness (in) - 3/8

Dimensions

Length X (in) - 10 1/2

Width Y (in) - 16 3/16

Height Z (in) - 1 9/16

Radii R (in) - 2 11/16

Hinge Length HX (in) - 3/16

Hinge Width HY (in) - 8 7/8

Cut-Out Length (Flat/Flange) X1 (in) - 7 15/16

Cut-Out Width (Flat/Flange) Y1 (in) - 13 11/16

Cut-Out Radii (Flat/Flange) R1 (in) - 1 7/16
