Lewmar

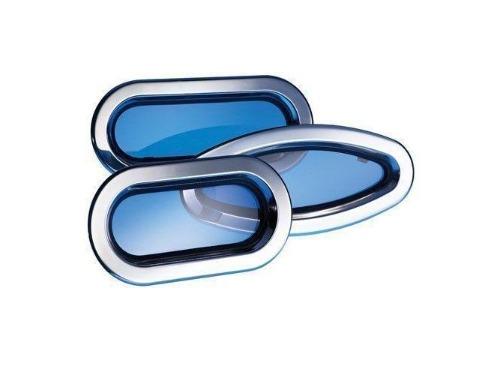

Lewmar Size 1 Opening Stainless Portlight

Lewmar Size 1 Opening Stainless Portlight

$313.71 USD
$497.95 USD $313.71 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Lewmar Size 1 Opening Stainless Portlight

Specifications

  • Trim Color - White

  • Version - Opening

  • Weight (lb) - 3.8

    Dimensions

  • X (in) - 7 1/2

  • Y (in) - 14 7/16

  • Z (in) - 3/16

  • R (in) - 2 7/16

  • X1 (in) - 6 3/4

  • Y1 (in) - 13 5/8

  • R1 (in) - 2 1/16

  • Acrylic Window Thickness (in) - 15/16

    Mounting Instructions:

    Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

  • Maximum hull thickness 30mm Minimum hull thickness 9mm

  • Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165.

  • All Portlights supplied with M5 x 20 screws (hull thickness 12-17mm)

  • Complete with flyscreen
