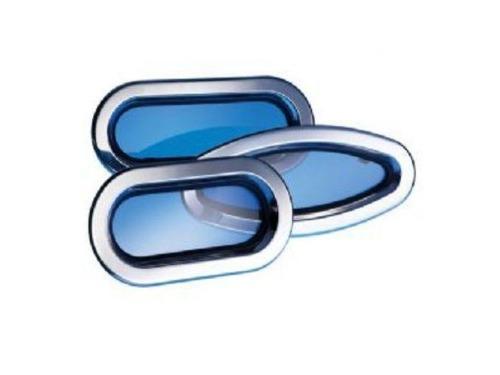

Lewmar Size 1 Fixed Stainless Portlight

Item #

393110262

$269.61 $427.95 You Save 36% ($158.34)

Usually ships within 1-3 days

Description

Product Description

Lewmar Size 1 Fixed Stainless Portlight

Specifications

Trim Color - White

Version - Fixed

Weight (lb) - 3.8

Dimensions

X (in) - 7 1/2

Y (in) - 14 7/16

Z (in) - 3/16

R (in) - 2 7/16

X1 (in) - 6 3/4

Y1 (in) - 13 5/8

R1 (in) - 2 1/16

Acrylic Window Thickness (in) - 3/8

Mounting Instructions:

Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.

Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

Maximum hull thickness 30mm

Minimum hull thickness 9mm

Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165.

All Portlights supplied with M5 x 20 screws (hull thickness 12-17mm)

Complete with flyscreen
