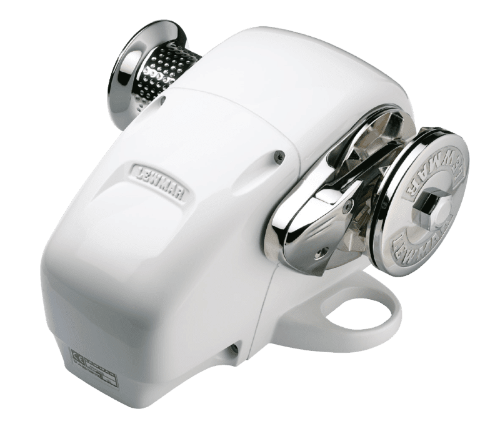

Lewmar H2 Gypsy Only 12V w/ 3/8" (10mm) Kit

Item #

69600534

$2,497.92 $3,964.95 You Save 36% ($1,467.03)

Usually ships within 1-3 days

Product Description

Lewmar H2 Gypsy Only 12V w/ 3/8" (10mm) Kit

Kits include: Built-in-dual-direction contactor, Breaker and Rocker Switch

Specifications

Model - H2

Motor Power Watts - 700W

Normal Current Draw - 80A

Circuit Breaker - 90A slow blow

Max Pull - 1433 lbs. (650 kg)

Max Line Speed - 69ft/min (21m/min

Working Load - 358 lbs. (163 kg)

Normal Line Speed - 69 ft. (21m)

Weight Gypsy/Drum - 52 lbs. (23.5 kg)

Gypsy Specifications

Gypsy Number - 506

Size - 3/8" (10mm)

Chain Description - 3/8" BBB, 10mm DIN 766, Lewmar 9.5 G40

Rope Description - 9/16"-5/8" (14-16mm) 3-strand and 8-plait (5/8" Only)

Cable Sizes

Voltage - 12V

Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 6 AWG (10mm²) 4 AWG (25mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current rating for Switch Wire - 5A
