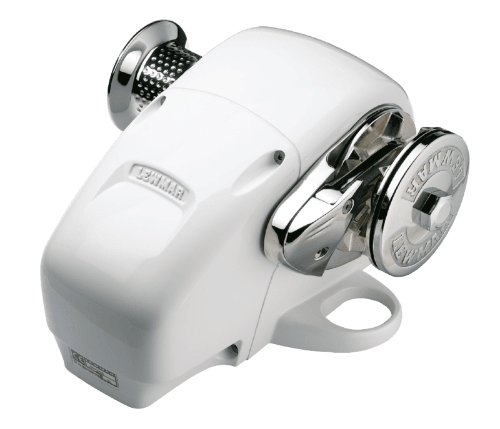

Lewmar H2 Gypsy Drum 12V w/ 5/16" (8mm) Kit

Item #

69600545

$3,222.07 $4,602.95 You Save 29% ($1,380.88)

Usually ships within 1-3 days

Product Description

Lewmar H2 Gypsy Drum 12V w/ 5/16" (8mm) Kit

Kits include: Built-in-dual-direction contactor, Breaker and Rocker Switch

Specifications

Model - H3

Motor Power Watts - 1000W

Normal Current Draw - 85A

Circuit Breaker - 100A slow blow

Max Pull - 1962 lbs. (890 kg)

Max Line Speed - 92ft/min (28m/min

Working Load - 475 lbs. (215 kg)

Normal Line Speed - 59 ft. (18m)

Weight Gypsy/Drum - 56 lbs. (25.5 kg)

Gypsy Specifications

Gypsy Number - 505

Size - 5/16" (8mm)

Chain Description - 5/16" BB, 5/16" US G4 ISO, 8mm DIN 766, 8mm ISO 4565

Rope Description - 9/16"-5/8" (14-16mm) 3-strand and 8-plait (5/8" Only)

Cable Sizes

Voltage - 12V

Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 6 AWG (16mm²) 2 AWG (25mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current rating for Switch Wire - 5A
