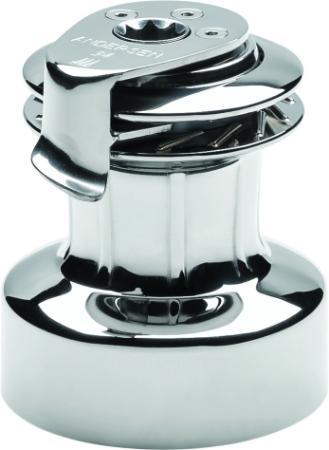

Andersen #34ST Self-Tailing 2 Speed Full Stainless Steel Winch

Item #

RA2034010000

$1,079.10 $1,199.00 You Save 10% ($119.90)

Usually ships within 1-3 days

Description

Product Description

Andersen #34ST Self-Tailing 2 Speed Full Stainless Steel Winch

Features:

Aesthetically appealing

A prerequisite for those yachtsman wanting their yacht to look its best.

Full Stainless Steel - synthetic cap and bases are replaced with stainless steel parts

Power Ratio

Power Ratio is the mechanical advantage of the winch and is calculated as follows:

length of handle x gear ratio /radius of drum

The pull of the winch is based on the Power Ratio and not just on the physical size of the winch or the diameter of the drum. The Power Ratio is used to determine the load the winch may handle as follows: pull of handle (kg x Power Ratio = pull of winch (kg).

This means that by applying a load of 10kg, using a 10" standard handle, on a Power Ratio 40:1 winch, the winch can pull 400kg, assuming that the winch is 100% efficient. This is not possible in practice as the efficiency is reduced by internal mechanical friction losses.

Specifications

Winch Model - #34 ST FS

Drum Diameter "D" - 70 mm (2 3/4")

Base Diameter "B" - 125 mm (4 15/16")

Height "H" - 147 mm (5 3/4")

Line entry height "L" - 65 mm (2 9/16")

Line size - 8 - 14 mm (5/16" - 9/16")

Weight - 4.1 kg (9 lbs)

Gear Ratio 1st speed - 1.3 : 1

Gear Ratio 2nd speed - 4.7 : 1

Power Ratio 1st speed - 9.5 : 1

Power Ratio 2nd speed - 33.8 : 1

Service Kit: Click Here for Service Kit
