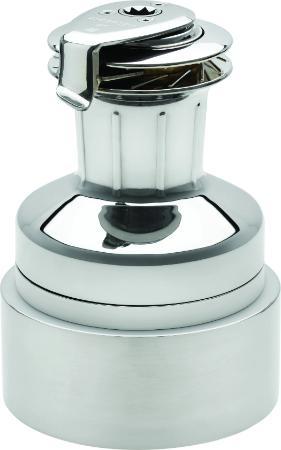

Andersen Electric Full Stainless Steel #46 Compact Variable Speed 12V Above Deck Winch

Item #

RA2046015200

$6,410.88 $7,123.20 You Save 10% ($712.32)

Usually ships within 1-3 days

Product Description

Andersen Electric Full Stainless Steel #46 Compact Variable Speed 12V Above Deck Winch

Features:

Highly efficient winch motor

Impressive line speed and first rate maximum load

Easy to install

Available in two versions: Above and Below deck

Winch mounted directly on the motor for deck

Available in Full Stainless or Non Stainless versions

Specifications:

Drum Ø D - 3 1/2 in. (89 mm)

Base Ø B - 7 1/16 in. (180 mm)

Height H - 7 61/64 in. (202 mm)

Line Entry L - 6 7/8 in. (175 mm)

Line Size - 5/16 - 9/16 in. (8 - 14 mm)

Weight - 41.89 lbs. (19 kg)

Max Deck Thickness K - 1 3/4 in. (45 mm)

Motor Height J - 3 3/8 in. (85 mm)

Motor Ø S - 7 7/8 in. (200 mm)

Motor Depth U - 1 9/16 - 2 15/16 in. (40 - 75 mm)
